BTS244Z

The BTS244Z is an N-Channel Power MOSFET from Infineon Technologies, rated for 55V drain-source voltage and 35A continuous drain current. It features a low on-resistance of 13mΩ at 10V gate drive and is AEC qualified for automotive applications.

✓ Total Stock: 4,000 pcs

BTS244Z Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Components Technology Group, Inc. ✓ Non-Authorised Inventory information	4,000 pcs On Request	4000 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

BTS244Z Description

Short technical summary and product information.

The BTS244Z is a Speed TEMPFET N-Channel enhancement mode power MOSFET from Infineon Technologies. It is designed for logic level gate drive with a maximum gate-source voltage of 20V and a gate threshold voltage range of 1.2V to 2V. The device is rated for a maximum drain-source voltage of 55V and a continuous drain current of 35A at 100°C case temperature. The pulsed drain current capability is 188A, and the single pulse avalanche energy rating is 1.65J.

The MOSFET features a low drain-source on-resistance of typically 13mΩ at VGS=10V and 18mΩ at VGS=4.5V. It includes an integrated temperature sensor with thyristor characteristics for overtemperature protection. The device is capable of fast switching up to 1MHz and is avalanche rated.

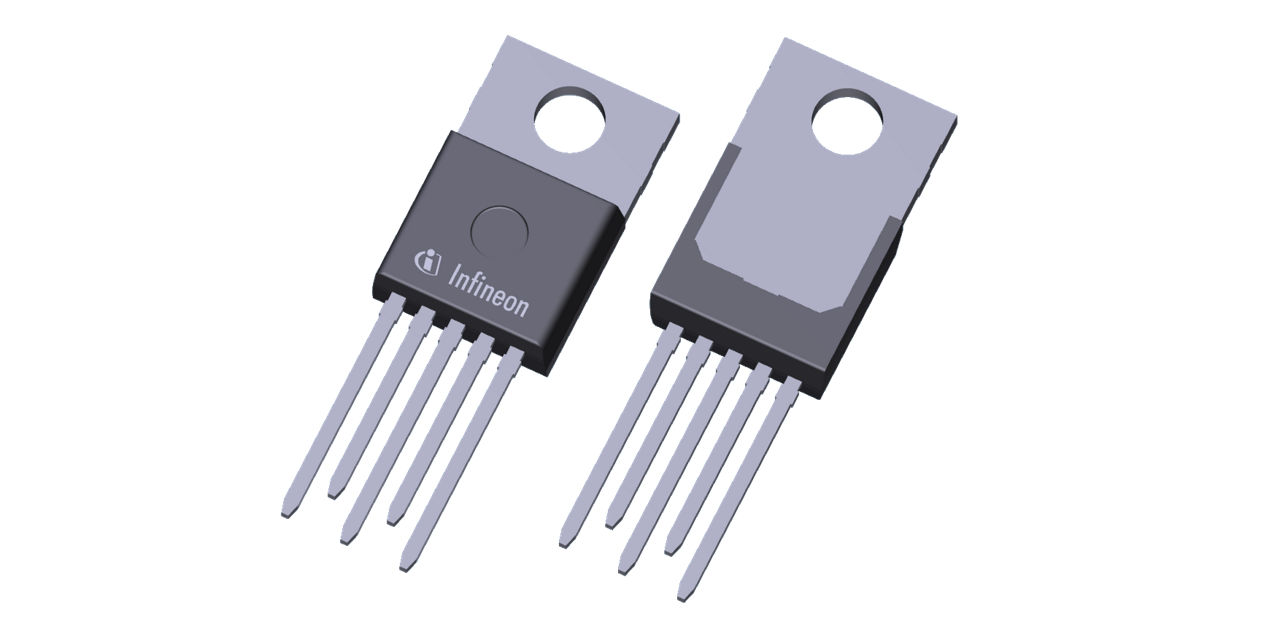

The BTS244Z is housed in a PG-TO220-5 package with through-hole mounting. It has five pins: gate, drain, source, and anode/cathode for the temperature sensor. The package is RoHS compliant and AEC qualified for automotive applications. The operating junction temperature range is -40°C to +175°C.

This MOSFET is suitable for applications requiring high efficiency power switching, such as automotive engine control modules, DC-DC converters, and motor control circuits. The integrated temperature sensor provides additional protection and monitoring capability.

BTS244Z Quick Information

Product Type: Power MOSFET

Series: TEMPFET

Canonical Name: Infineon BTS244Z N-Channel Power MOSFET (Speed TEMPFET)

Subcategory: N-Channel MOSFET

BTS244Z Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

BTS244Z Features

55V drain-source voltage rating.
35A continuous drain current at 100°C.
Low on-resistance of 13mΩ typical at 10V.
Integrated temperature sensor for protection.
AEC qualified for automotive applications.

BTS244Z Applications

Automotive engine control modules.
DC-DC converters and power supplies.
Motor control and drive circuits.
High efficiency power switching up to 1MHz.

BTS244Z FAQs

7 frequently asked questions generated from this part’s specifications.

What is the maximum drain-source voltage of the BTS244Z?

55V.

What is the continuous drain current rating?

35A at TC=100°C with VGS=4.5V.

What is the on-resistance?

Typical 13mΩ at VGS=10V, ID=19A; typical 18mΩ at VGS=4.5V.

What package is the BTS244Z available in?

PG-TO220-5 (through-hole).

What is the operating junction temperature range?

-40°C to +175°C.

Is the BTS244Z RoHS compliant?

Yes, it is RoHS compliant and AEC qualified.

Does the BTS244Z have an integrated temperature sensor?

Yes, it includes a potential-free temperature sensor with thyristor characteristics for overtemperature protection.

Category	Transistors - FETs, MOSFETs - Single
Manufacturer Name	Infineon Technologies
AEC Qualified	AEC Qualified
Automotive Grade	Yes
Lead Spacing	2.54 mm
Lead Style	Through Hole
Mounting Type	Through Hole
Number of Pins	5
Supplier Device Package	PG-TO220-5-3, PG-TO220-5-62, PG-TO220-5-43
Tape & Reel	No
Technology	N-Channel
