| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
700 pcs
|
700 pcs | On Request | 1 | On Request | On Request | 02+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Drain to Source Voltage (Vdss) | |
| Drive Voltage (Max Rds On, Min Rds On) | |
| FET Type | |
| Input Capacitance (Ciss) (Max) @ Vds | |
| Mounting Type | |
| Operating Temperature | |
| Power Dissipation (Max) | |
| Rds On (Max) @ Id, Vgs | |
| Supplier Device Package | |
| Tape & Reel | |
| Technology | |
| Vgs (Max) | |
| Vgs(th) (Max) @ Id |
The Infineon BTS240AHKSA1 is a single N-Channel power MOSFET built with Metal Oxide semiconductor technology. It is designed for moderate voltage and high current switching applications. The device is rated for a maximum drain-source voltage of 50V and a continuous drain current of 58A at the case temperature (Tc), making it suitable for power conversion and load switching circuits.
The MOSFET offers a maximum drain-source on-resistance of 18mOhm at a gate drive of 10V and a drain current of 47A, which supports efficient power handling with reduced conduction losses. The gate threshold voltage is specified up to 3.5V at 1mA, and the maximum gate-source voltage is ±20V. The input capacitance is 4300pF at 25V drain-source bias, which influences gate drive requirements for switching speed.

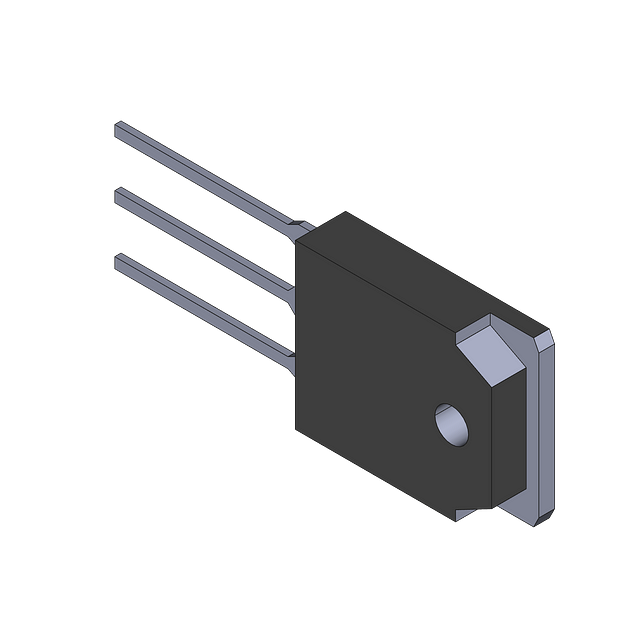

The component is packaged in a TO-218-3 case (also known as PG-TO218-3-1) and is designed for through-hole mounting, which provides robust thermal and mechanical performance. The maximum power dissipation is 170W, and the junction operating temperature range is -55°C to 150°C.
| Qty | Low | High |
|---|---|---|
| 21+ | $14.45 | $14.45 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum drain-source voltage is 50V.
The maximum continuous drain current is 58A at the case temperature (Tc).
The maximum drain-source on-resistance is 18mOhm at Id=47A and Vgs=10V.
The junction operating temperature range is -55°C to 150°C.
The BTS240AHKSA1 comes in a TO-218-3 package (supplier device package PG-TO218-3-1) and is through-hole mountable.
The maximum gate threshold voltage is 3.5V at Id=1mA.
RoHS3 compliance is listed but unverified.
