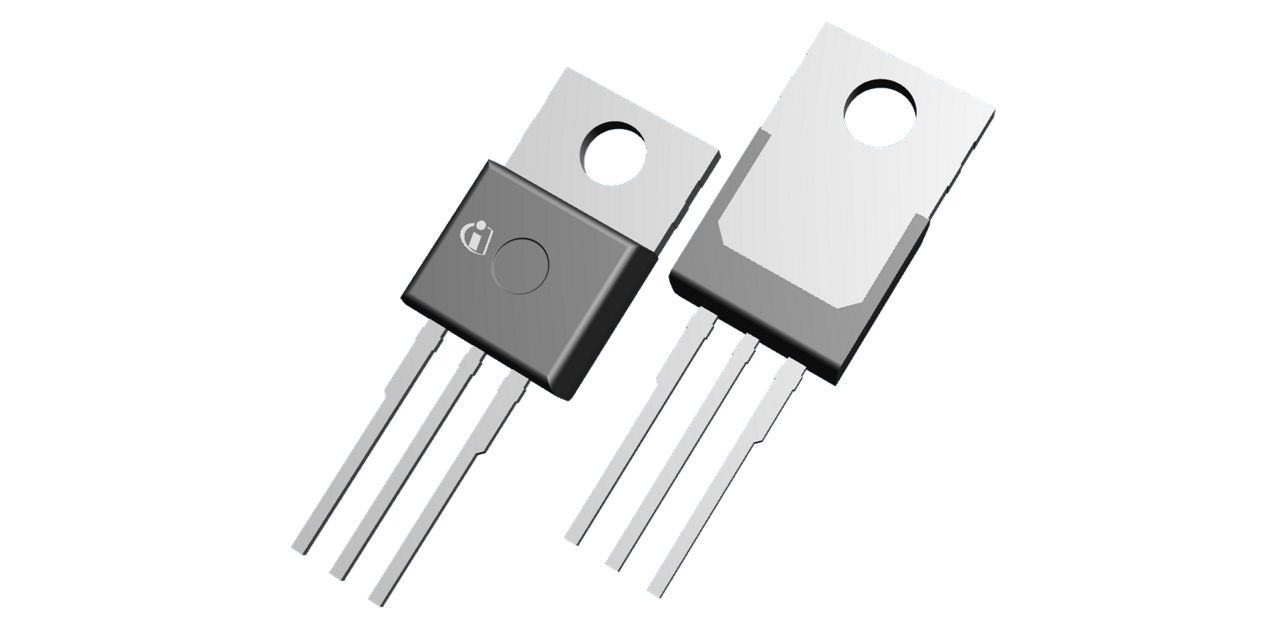

BTS117 The Infineon Technologies BTS117 is a smart low-side power switch with integrated protection features. It offers a 60V drain-source voltage and a 7A current limit, suitable for various DC applications.
Mfr Part #:

BTS117

Available from 3 distributors
Mfr Name: Infineon Technologies
Infineon Technologies
The Infineon Technologies BTS117 is a smart low-side power switch with integrated protection features. It offers a 60V drain-source voltage and a 7A current limit, suitable for various DC applications.
✓ Total Stock: 8,440 pcs
$ Price Range: $0.32

BTS117 Available from 3 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Components Technology Group, Inc. ✓
Non-Authorised Inventory information
5,500 pcs
On Request
5500 pcs On Request 1 On Request On Request On Request On Request On Request
Fe Components ✓
Non-Authorised Inventory information
1,733 pcs
On Request
1733 pcs On Request 1 On Request On Request On Request On Request On Request
Xingangxin ✓
Non-Authorised Inventory information
1,207 pcs
On Request
1207 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

BTS117 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Fault Protection
Halogen Free
Input Type
Interface
Mounting Type
Number of Outputs
Operating Temperature
Output Configuration
Output Type
Power Dissipation
Ratio
Rds On (Typ)
Storage Temperature
Supplier Device Package
Supplier Package
Switch Type
Voltage
View Similar Products (0)

BTS117 Description

Short technical summary and product information.

The Infineon Technologies BTS117 is an N-channel vertical power FET designed as a smart low-side power switch. It utilizes Smart SIPMOS technology and provides embedded protection functions including overvoltage, overload, short circuit, and thermal shutdown with latch. This HITFET is AEC qualified and RoHS compliant.



Key electrical characteristics include a 60V drain-source voltage, a 7A current limit, and a nominal load current of 3.5A. The on-state resistance is 100 mΩ. It features logic-level input with input protection (ESD) and status feedback capability. The device is designed for 12V and 24V DC applications, replacing electromechanical relays and discrete circuits.



Packaged in a TO-263-3, D²Pak (2 Leads + Tab), TO-263AB surface mount package, the BTS117 operates within a temperature range of -40°C to +150°C. Its thermal resistance junction-to-ambient is 45 K/W when mounted on a PCB. The device is suitable for resistive, inductive, and capacitive loads in switching or linear applications.

BTS117 Quick Information

Product Type: Power Distribution Switch
Series: Classic HITFET
Canonical Name: Infineon Technologies BTS117 N-Channel Smart Low Side Power Switch
Subcategory: Power Distribution Switches

BTS117 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

BTS117 Estimated Pricing

Qty Low High
1+ $0.32 $0.32

Estimated market price range - modelled values for guidance only, not live distributor offers.

BTS117 Features

  • Integrated protection functions included.
  • Logic level input with ESD protection.
  • 60V drain-source voltage rating.
  • 7A current limit capability.
  • AEC qualified for automotive use.

BTS117 Applications

  • Suitable for 12V and 24V DC applications.
  • Replaces electromechanical relays.
  • Drives resistive, inductive loads.
  • Drives capacitive loads effectively.
  • Used in switching or linear applications.

BTS117 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the operating temperature range of the BTS117?

-40°C to +150°C junction temperature.

What packages is the BTS117 available in?

The BTS117 is available in TO-263-3 (D2Pak) and PG-TO220-3-5 packages.

What is the maximum drain-source voltage?

60V.

What is the nominal load current?

3.5A.

What is the typical on-state resistance?

80 mΩ typical.

What protection features does the BTS117 include?

Current limiting (7A fixed), over-voltage protection, and over-temperature shutdown.

What is the input interface type?

On/Off logic, non-inverting input.
