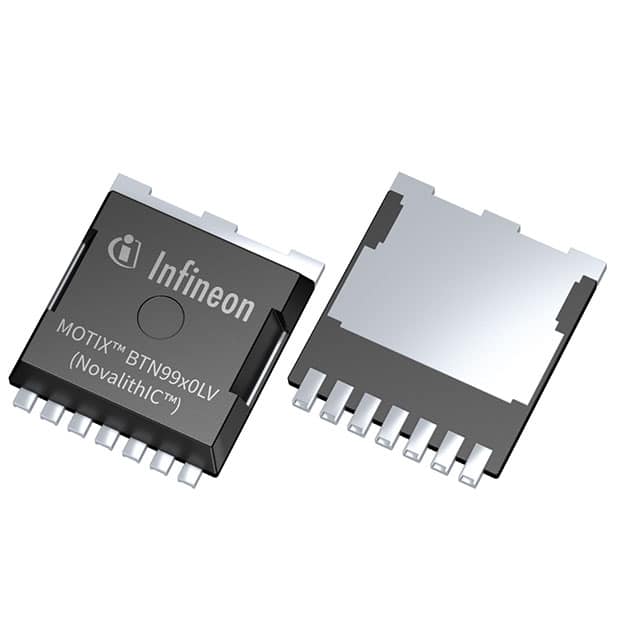

The BTN9970LV is an integrated high current half-bridge driver for motor drive applications, part of the NovalithIC™+ family. It features one p-channel high-side MOSFET and one n-channel low-side MOSFET with an integrated driver IC in a single PG-HSOF-7-1 package.
This device operates within a supply voltage range of 8 V to 18 V (max up to 40 V) and offers a low quiescent current of 3.3 µA at 85°C. Key protection features include overcurrent, undervoltage, and overtemperature protection, with an overcurrent detection level of 60 A minimum. It also provides eight selectable switching slew rates for optimized EME and status flag diagnosis with feedback of current sense and temperature.
The BTN9970LV is designed for automotive 12 V brushed DC motor applications, such as fuel pumps and power liftgates, as well as HVAC blowers. Its integrated driver IC simplifies interfacing with microcontrollers through logic-level inputs and offers features like current sense, slew rate adjustment, dead time generation, and short circuit protection.
Packaged in a surface mount PG-HSOF-7-1 (sTOLL) package, the BTN9970LV provides a cost-optimized solution for protected high current PWM motor drives, requiring minimal board space.
| Qty | Low | High |
|---|---|---|
| 1+ | $4.68 | $4.68 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
8V to 18V, with maximum up to 40V.
-40°C to 150°C (junction temperature).
PG-HSOF-7-1 and 7-PowerSFN surface mount package.
9.7 mΩ at 25°C, maximum 18.1 mΩ at 150°C.
Overcurrent, overtemperature, short circuit, and undervoltage lockout (UVLO).
Maximum 3.3 µA at 85°C.
Logic and PWM.
