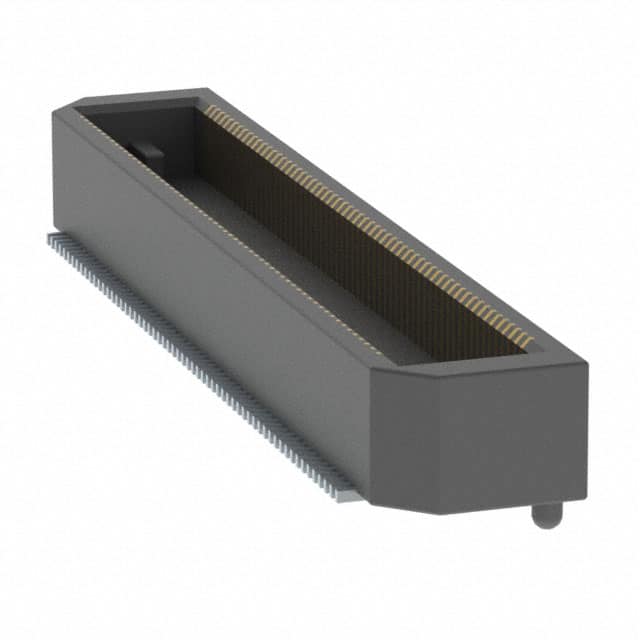

BTH-060-01-L-D-A-K-TR Samtec BTH-060-01-L-D-A-K-TR is a 120 position, 0.50mm pitch surface mount header with gold contact finish and 5mm mated stacking height.
Mfr Part #:

BTH-060-01-L-D-A-K-TR

Available from 1 distributors
Mfr Name: Samtec Inc.
Samtec Inc.
Samtec BTH-060-01-L-D-A-K-TR is a 120 position, 0.50mm pitch surface mount header with gold contact finish and 5mm mated stacking height.
✓ Total Stock: 25 pcs
$ Price Range: $3.30 - $6.03

BTH-060-01-L-D-A-K-TR Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Innova Technologies ✓
Non-Authorised Inventory information
25 pcs
On Request
25 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

BTH-060-01-L-D-A-K-TR Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Features
Height Above Board
Lead Spacing
Lead Style
Mated Stacking Heights
Mounting Type
Number of Positions
Number of Rows
Pitch
View Similar Products (0)

BTH-060-01-L-D-A-K-TR Description

Short technical summary and product information.

The Samtec BTH-060-01-L-D-A-K-TR is a high-density mezzanine connector featuring 120 positions arranged in 2 rows with a 0.50mm pitch. This surface mount header uses gold contact finish with 10.0µin thickness for reliable signal integrity. The connector has a mated stacking height of 5mm and a height above board of 0.168" (4.27mm). It includes a board guide feature for alignment during assembly. The part is supplied in Tape & Reel packaging suitable for automated pick-and-place processes. Designed for board-to-board applications, this connector is part of Samtec's BTH series and is RoHS3 compliant with MSL 1 unlimited moisture sensitivity level.

BTH-060-01-L-D-A-K-TR Quick Information

Product Type: Header Connector
Series: BTH
Canonical Name: Samtec BTH-060-01-L-D-A-K-TR 120 Position 0.50mm Pitch Surface Mount Header
Subcategory: Mezzanine Connector

BTH-060-01-L-D-A-K-TR Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

BTH-060-01-L-D-A-K-TR Estimated Pricing

Qty Low High
1+ $6.03 $6.03
10+ $5.12 $5.12
25+ $4.80 $4.80
50+ $4.57 $4.57
100+ $4.36 $4.36
425+ $3.30 $3.30

Estimated market price range - modelled values for guidance only, not live distributor offers.

BTH-060-01-L-D-A-K-TR Features

  • 120 position 2-row 0.50mm pitch header.
  • Gold contact finish with 10.0µin thickness.
  • Surface mount with 5mm stacking height.
  • Includes board guide for alignment.
  • Tape & Reel packaging for automated assembly.

BTH-060-01-L-D-A-K-TR Applications

  • High-density board-to-board mezzanine connections.
  • Compact electronic device interconnects.
  • Automated surface mount assembly applications.

BTH-060-01-L-D-A-K-TR FAQs

5 frequently asked questions generated from this part’s specifications.
What is the pitch of the BTH-060-01-L-D-A-K-TR?

0.50mm (0.020")

How many positions does this connector have?

120 positions

What is the mounting type?

Surface Mount

What is the contact finish?

Gold with 10.0µin (0.25µm) thickness

What is the mated stacking height?

5mm
