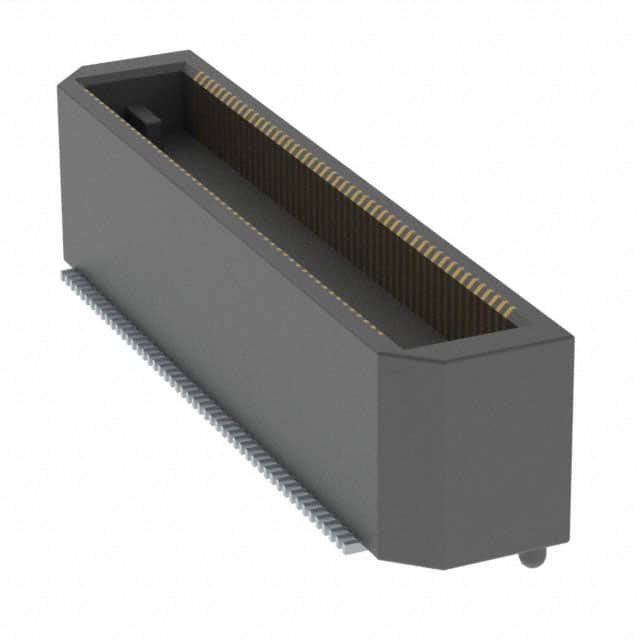

The Samtec BTH-050-02-L-D-A-K is a 100 position, 2 row, 0.50mm pitch surface mount header from the BTH series. It features outer shroud contacts with 10.0µin (0.25µm) gold plating on the contact area and a black LCP insulator. The connector includes a polyimide film pick & place pad for automated assembly.
Electrical ratings include 2.0A per pin (with 2 pins powered) and a maximum voltage rating of 175VAC. The operating temperature range is -55°C to +125°C, and the connector is rated for 100 mating cycles. The mated stacking height is 8mm.
The connector is surface mount with SMT lead coplanarity of 0.10mm maximum. It is lead-free solderable and uses phosphor bronze contact material. The board guide feature aids in alignment during assembly.
| Qty | Low | High |
|---|---|---|
| 65+ | $4.21 | $4.21 |
| 130+ | $3.67 | $3.67 |
| 260+ | $3.36 | $3.36 |
| 520+ | $3.15 | $3.15 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The pitch is 0.50mm (0.020").
It has 100 positions arranged in 2 rows of 50 positions per row.
The current rating is 2.0A per pin (with 2 pins powered).
The maximum voltage rating is 175VAC.
The connector is surface mount (SMT) and includes a polyimide film pick & place pad.
The operating temperature range is -55°C to +125°C.
The mated stacking height is 8mm.
