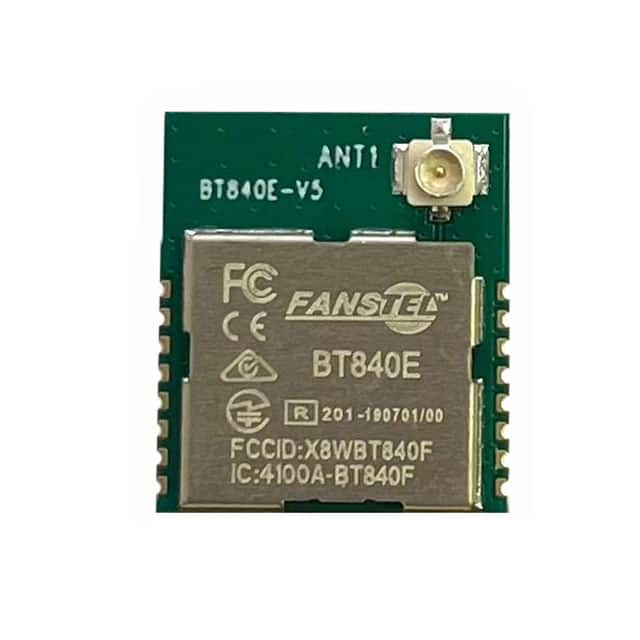

BT840E The Fanstel Corp. BT840E-P is a versatile RF transceiver module supporting Bluetooth 5.3, Thread, and Zigbee protocols. It operates from 1.7V to 5.5V and features a sensitivity of -96dBm.
Mfr Part #:

BT840E

Available from 1 distributors
Mfr Name: Fanstel Corp.
Fanstel Corp.
The Fanstel Corp. BT840E-P is a versatile RF transceiver module supporting Bluetooth 5.3, Thread, and Zigbee protocols. It operates from 1.7V to 5.5V and features a sensitivity of -96dBm.
✓ Total Stock: 29 pcs
$ Price Range: $0.99

BT840E Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
29 pcs
On Request
29 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

BT840E Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Antenna Type
Data Rate
Frequency
Memory Size
Mounting Type
Operating Temperature
Power
Protocol
RF Family
Sensitivity
Serial Interfaces
Tape & Reel
Utilized IC
Voltage
View Similar Products (0)

BT840E Description

Short technical summary and product information.

The Fanstel Corp. BT840E-P is a powerful and flexible RF transceiver module designed for low-power wireless applications. It utilizes the Nordic nRF52840 SoC and supports multiple protocols including Bluetooth v5.3, Thread, and Zigbee.



Key electrical specifications include an operating voltage range of 1.7V to 5.5V, a transmitting current of 13.6mA, and a receiving current of 4.6mA. The module offers a data rate of up to 2Mbps for Bluetooth and 250 Kbps for 802.15.4 protocols. It boasts a receiver sensitivity of -96dBm and a programmable TX power up to 8.49dBm.



This module is designed for surface mount applications and features a U.FL connector for external antennas, offering flexibility in antenna selection. The compact 16-SMD Module package is suitable for space-constrained designs. It operates reliably within a temperature range of -40°C to 85°C.



The BT840E-P is ideal for a wide range of IoT devices, smart home applications, and wireless sensor networks where robust and efficient wireless communication is essential.

BT840E Quick Information

Product Type: RF Transceiver Module
Canonical Name: Fanstel Corp. BT840E-P Bluetooth v5.3, Thread, Zigbee® Transceiver Module
Subcategory: Bluetooth, Zigbee, Thread

BT840E Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

BT840E Estimated Pricing

Qty Low High
1+ $0.99 $0.99

Estimated market price range - modelled values for guidance only, not live distributor offers.

BT840E Features

  • Supports Bluetooth 5.3, Thread, and Zigbee.
  • Operates from 1.7V to 5.5V supply voltage.
  • Features -96dBm receiver sensitivity.
  • Includes U.FL connector for external antenna.
  • Surface mount package for easy integration.

BT840E Applications

  • Ideal for IoT device development.
  • Suitable for smart home automation.
  • Used in wireless sensor networks.
  • Enables low-power wireless communication.

BT840E FAQs

7 frequently asked questions generated from this part’s specifications.
What protocols does the Fanstel Corp. BT840E-P module support?

The BT840E-P module supports Bluetooth v5.3, Thread, and Zigbee protocols.

What is the operating voltage range for the BT840E-P module?

The operating voltage range for the BT840E-P module is 1.7V to 5.5V.

What is the receiver sensitivity of the BT840E-P module?

The receiver sensitivity of the BT840E-P module is -96dBm.

What type of antenna connector does the BT840E-P module use?

The BT840E-P module uses a U.FL connector for antenna connection and is supplied without an antenna.

What are the serial interfaces available on the BT840E-P module?

The BT840E-P module offers GPIO, I2C, I2S, SPI, and UART serial interfaces.

What is the operating temperature range for the BT840E-P module?

The BT840E-P module operates in a temperature range of -40°C to 85°C.

What is the RoHS status of the BT840E-P module?

The BT840E-P module is RoHS3 Compliant.
