| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,500 pcs
|
2500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
10 pcs
|
10 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Antenna Type | |
| Current | |
| Data Rate | |
| Frequency | |
| Mounting Type | |
| Operating Temperature | |
| Output Power | |
| Protocol | |
| Sensitivity | |
| Storage Temperature | |
| Supply Voltage | |
| Tape & Reel |

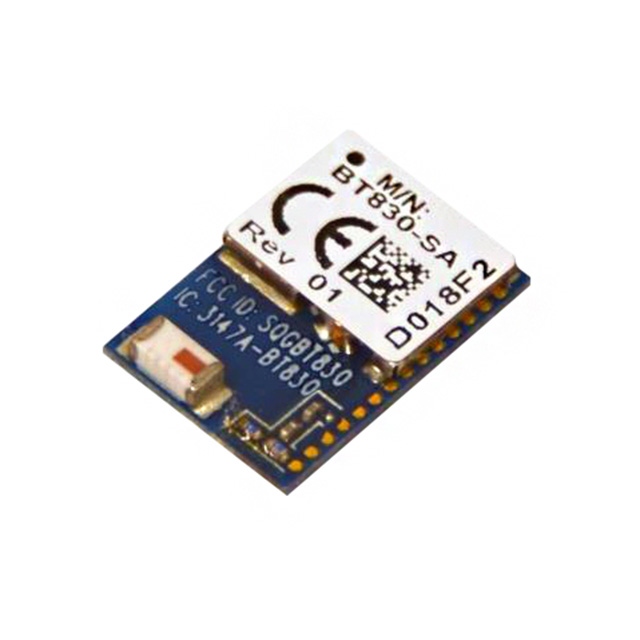

The Laird Connectivity BT830-SA-01 is a Bluetooth v4.0 transceiver module designed for RF and wireless applications. This module operates in the 2.4GHz frequency band and supports data rates up to 3Mbps.
Key electrical specifications include an output power of 7dBm, a sensitivity of -89dBm, and a supply voltage of 3.3V. It consumes 7.1mA during both receiving and transmitting. The module supports serial interfaces such as I2S, SPI, and UART, utilizing the CSR8811 IC.
This component is housed in a surface mount module package and features an integrated chip antenna. It operates within a temperature range of -30°C to 85°C. The product status is listed as 'Not For New Designs'.
Environmental compliance includes RoHS3 compliance and REACH unaffected status. The Moisture Sensitivity Level (MSL) is 3 (168 Hours).
| Qty | Low | High |
|---|---|---|
| 1+ | $165.89 | $165.89 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The BT830-SA-01 module supports Bluetooth v4.0.
The BT830-SA-01 module operates at 2.4GHz.
The output power of the BT830-SA-01 module is 7dBm.
The BT830-SA-01 module requires a supply voltage of 3.3V.
The BT830-SA-01 module supports I2S, SPI, and UART serial interfaces.
The BT830-SA-01 module operates from -30°C to 85°C.
The product status for the BT830-SA-01 module is 'Not For New Designs'.
