| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4,500 pcs
|
4500 pcs | On Request | 1 | On Request | On Request | 2242 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Configuration | |
| Mounting Type | |
| Operating Temperature | |
| Supplier Device Package |

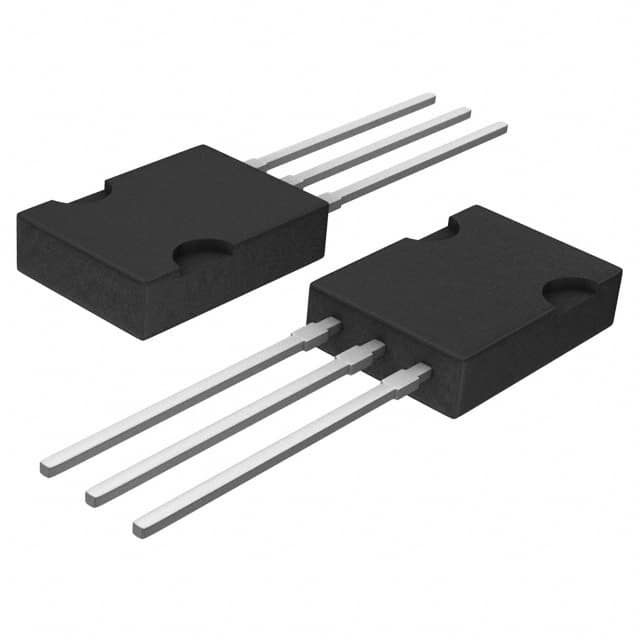

The BT134-600D from WeEn Semiconductors is a TRIAC component designed for power control applications. It features a logic-sensitive gate, making it suitable for various switching and control circuits.
Key electrical specifications include an off-state voltage of 600V and a maximum on-state current of 4A (RMS). The gate trigger voltage is a maximum of 1.5V, with a maximum gate trigger current of 5mA. It also has a maximum holding current of 10mA. The non-repetitive surge current capability is rated at 25A and 27A for 50/60Hz.
This TRIAC operates within a temperature range of -40°C to 125°C (TJ). It is mounted using a through-hole method and comes in a SOT-82-3 package, also referred to as SOT-82.
Environmental compliance includes RoHS compliance and Moisture Sensitivity Level 1 (Unlimited). The REACH status is unaffected.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.27 | $1.27 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum off-state voltage is 600V.
The maximum RMS on-state current is 4A.
The maximum gate trigger voltage is 1.5V and the maximum gate trigger current is 5mA.
The maximum holding current is 10mA.
It is housed in a SOT-82 through-hole package (supplier package SOT-82-3).
The maximum operating junction temperature is 125°C.
The surge current rating is 25A at 50Hz and 27A at 60Hz.
