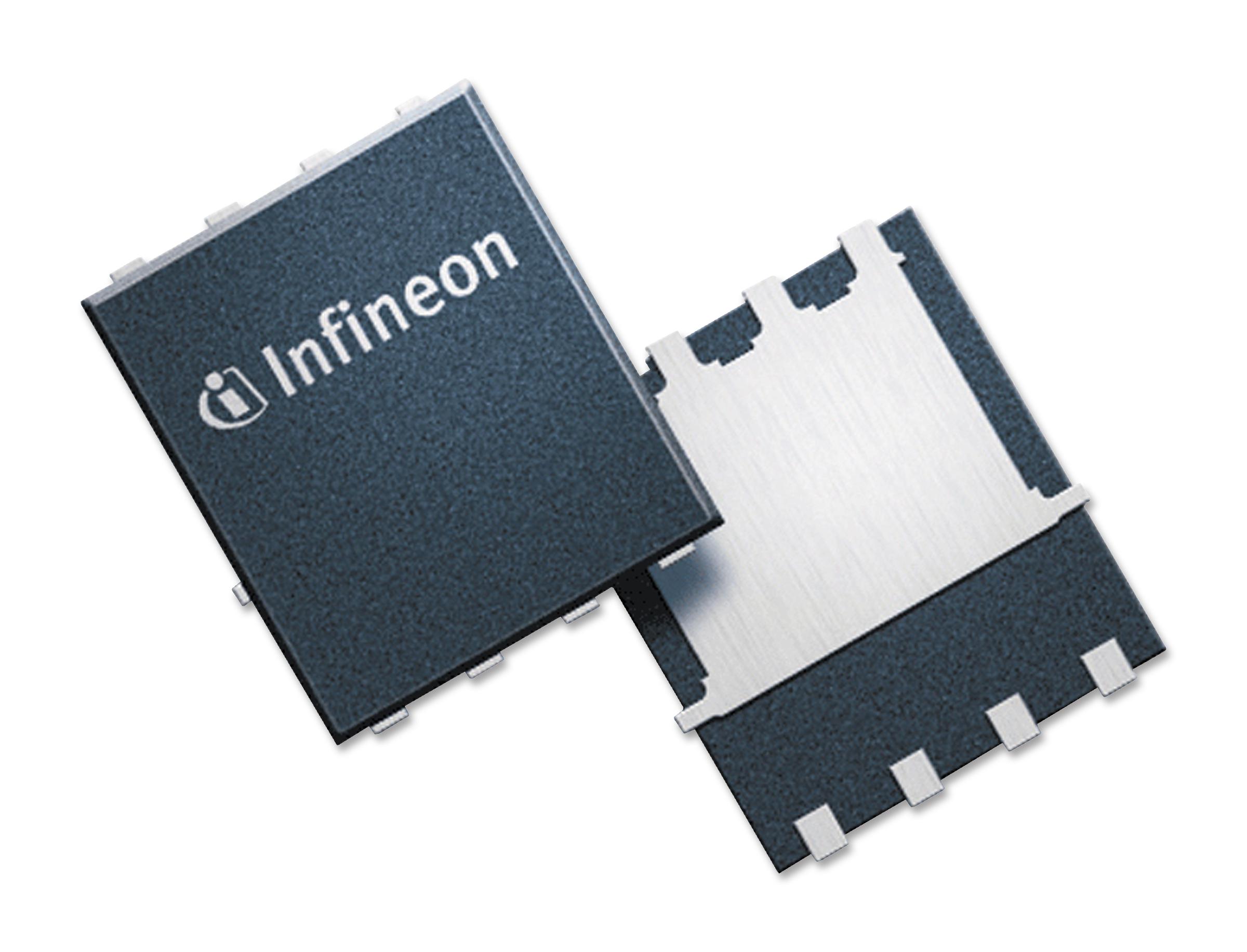

The Infineon BSZ440N10NS3GATMA1 is an N-Channel enhancement mode power MOSFET built on the OptiMOS 3 technology platform. It is designed for high-efficiency power conversion applications. The device features a drain-to-source voltage (Vds) of 100V and a continuous drain current (Id) of 18A at Tc=25°C. The maximum on-resistance (Rds(on)) is 44mOhm at Vgs=10V and Id=12A, enabling low conduction losses.
This MOSFET offers a low gate charge (Qg) of 9.1nC at Vgs=10V, which reduces switching losses in high-frequency circuits. The input capacitance (Ciss) is 640pF at Vds=50V. The device is capable of handling pulsed drain currents up to 72A and has an avalanche energy rating of 17mJ. The operating junction temperature range is -55°C to 150°C.
The BSZ440N10NS3GATMA1 is housed in a PG-TSDSON-8 (8-PowerTDFN) surface-mount package. It is RoHS compliant, halogen-free, and features Pb-free lead plating. The part is qualified according to JEDEC standards for target applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.43 | $1.43 |
| 10+ | $0.90 | $0.90 |
| 100+ | $0.60 | $0.60 |
| 500+ | $0.47 | $0.47 |
| 1,000+ | $0.39 | $0.39 |
| 5,000+ | $0.37 | $0.37 |
| 10,000+ | $0.36 | $0.36 |
| 25,000+ | $0.35 | $0.35 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum drain-to-source voltage (Vds) is 100V.
The maximum continuous drain current is 18A at Tc=25°C and 5.3A at Ta=25°C.
The maximum drain-to-source on-resistance (Rds(on)) is 44mOhm at Vgs=10V and Id=12A.
The operating junction temperature range is -55°C to 150°C.
It comes in an 8-PowerTDFN surface-mount package, also known as PG-TSDSON-8.
Yes, it is RoHS compliant and halogen-free according to IEC61249-2-21.
The maximum gate charge (Qg) is 9.1nC at Vgs=10V.
