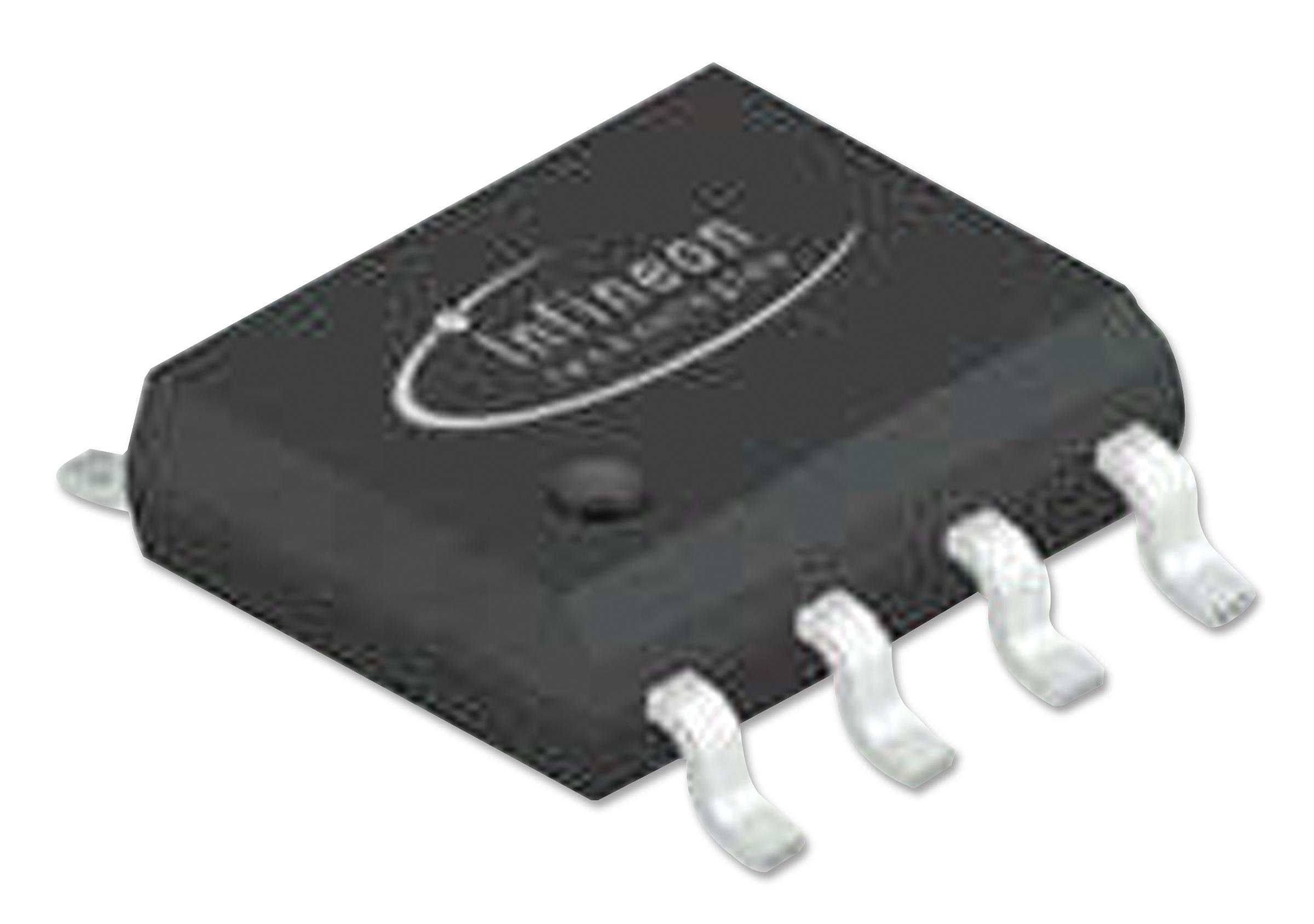

The BSZ340N08NS3GATMA1 is an N-Channel power MOSFET from Infineon Technologies, part of the OptiMOS 3 family. It is designed for high-frequency switching applications and optimized for DC/DC converters. The device offers a drain-source voltage of 80V and a continuous drain current of 23A at 25°C case temperature, with a pulsed drain current rating of 92A.
The MOSFET features a maximum drain-source on-resistance of 34mΩ at V_GS=10V and I_D=12A, and 66mΩ at V_GS=6V and I_D=6A. It has a gate threshold voltage range of 2V to 3.5V, and a total gate charge of 6.8nC typical (9.1nC max) at V_GS=10V. The device is 100% avalanche tested and has an avalanche energy rating of 20mJ.
The BSZ340N08NS3GATMA1 is housed in a PG-TSDSON-8 surface-mount package, also known as 8-PowerTDFN. It is Pb-free plated, RoHS compliant, and halogen-free according to IEC61249-2-21. The operating junction temperature range is -55°C to 150°C.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.54 | $1.54 |
| 10+ | $0.96 | $0.96 |
| 100+ | $0.63 | $0.63 |
| 500+ | $0.50 | $0.50 |
| 1,000+ | $0.42 | $0.42 |
| 2,500+ | $0.40 | $0.40 |
| 5,000+ | $0.34 | $0.34 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum drain-source voltage is 80V.
The continuous drain current is 23A at Tc=25°C, 15A at Tc=100°C, and 6A at Ta=25°C.
The operating junction temperature range is -55°C to 150°C.
Yes, the device is RoHS compliant and has Pb-free plating.
The package is PG-TSDSON-8, also known as 8-PowerTDFN, and it is surface mount.
The maximum on-resistance is 34mΩ at Vgs=10V and Id=12A.
The gate threshold voltage ranges from 2V minimum to 3.5V maximum, with a typical value of 2.8V.
