| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
13 pcs
|
13 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Halogen Free | |
| Mounting Type | |
| Power Dissipation | |
| Tape & Reel |
The Infineon BSZ15DC02KD is a dual MOSFET designed with complementary P+N channels in an enhancement mode configuration. It offers super logic level performance, rated for 2.5V, and features a common drain configuration. This device is avalanche rated and can operate at temperatures up to 175°C, making it suitable for demanding applications.
Key electrical characteristics include a drain-source breakdown voltage of -20V for the P-channel and 20V for the N-channel. The gate threshold voltage ranges from -1.4V to -0.7V for the P-channel and 0.8V to 1.4V for the N-channel. On-state resistance (RDS(on)) is as low as 55mΩ (typical) for the N-channel at VGS=4.5V and 55mΩ (typical) for the P-channel at VGS=-4.5V.
This MOSFET is qualified according to AEC Q101 standards, ensuring high reliability. It is packaged in a PG-TSDSON-8 surface-mount package and is 100% lead-free and halogen-free, complying with RoHS and IEC61246-21 standards.
| Qty | Low | High |
|---|---|---|
| 1+ | $3.03 | $3.03 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The drain-source breakdown voltage is -20V for the P-channel and 20V for the N-channel.
The gate threshold voltage is between -1.4V and -0.7V for the P-channel, and between 0.8V and 1.4V for the N-channel.
The maximum continuous drain current is -3.2A for the P-channel and 5.1A for the N-channel.
The maximum operating temperature is 175°C.

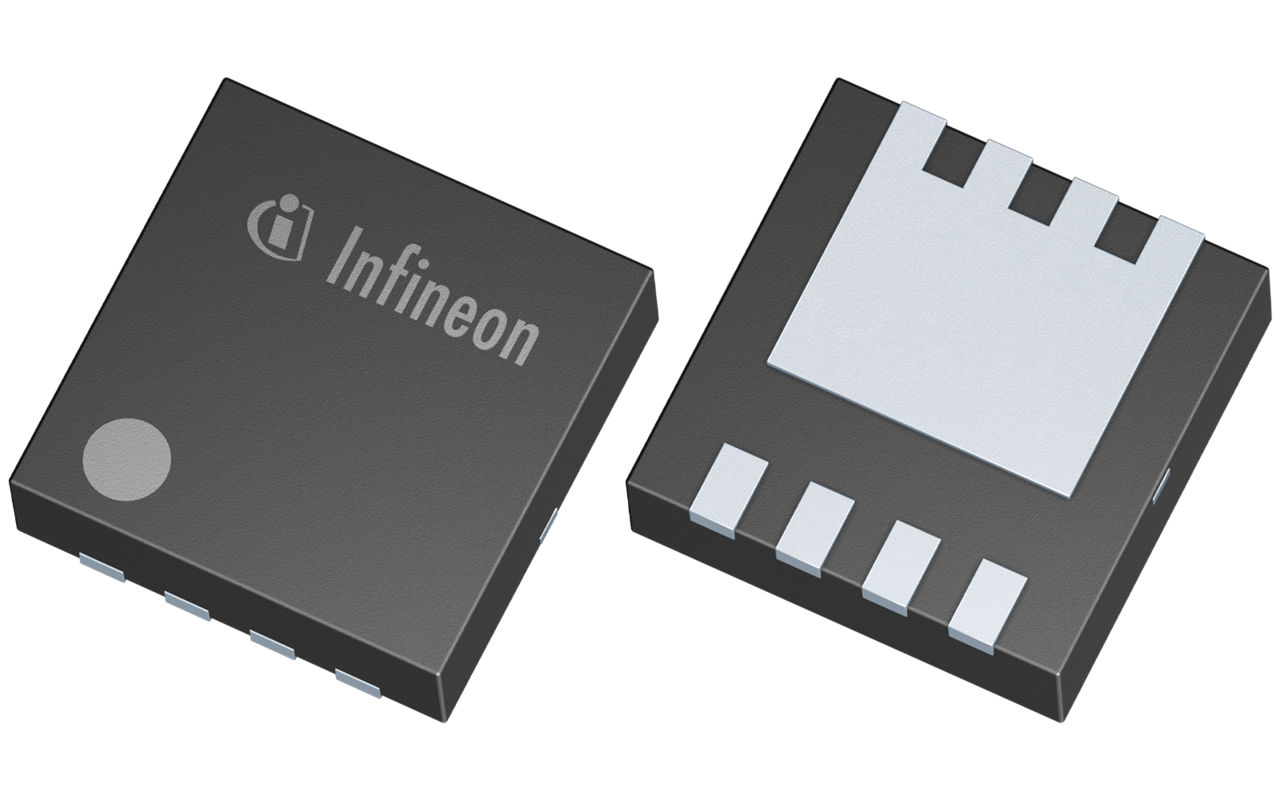

The BSZ15DC02KD is in a PG-TSDSON-8 package.
Yes, it is RoHS3 Compliant.
The Moisture Sensitivity Level is 1 Unlimited.
