BSZ096N10LS5 The Infineon BSZ096N10LS5 is an N-channel MOSFET designed for high-frequency switching applications. It offers a 100V drain-source voltage and a low on-resistance.
Mfr Part #:

BSZ096N10LS5

Available from 2 distributors
Mfr Name: Infineon
Infineon
The Infineon BSZ096N10LS5 is an N-channel MOSFET designed for high-frequency switching applications. It offers a 100V drain-source voltage and a low on-resistance.
✓ Total Stock: 56,000 pcs
$ Price Range: $2.40

BSZ096N10LS5 Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Smaxon Electronics ✓
Non-Authorised Inventory information
55,000 pcs
On Request
55000 pcs On Request 1 On Request On Request 17+ On Request On Request
Xingangxin ✓
Non-Authorised Inventory information
1,000 pcs
On Request
1000 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

BSZ096N10LS5 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
AEC Qualified
Automotive Grade
Gate Charge
Halogen Free
Industrial Grade
Lead Spacing
Lead Style
Mounting Type
SVHC Present
Storage Temperature
Tape & Reel
View Similar Products (0)

BSZ096N10LS5 Description

Short technical summary and product information.

The Infineon BSZ096N10LS5 is a high-performance N-channel MOSFET from the OptiMOSTM5 family. It is engineered for demanding applications such as DC/DC converters and high-frequency switching circuits, offering an excellent gate charge x RDS(on) product (FOM).



This device features a maximum drain-source voltage (VDS) of 100V and a maximum on-resistance (RDS(on)) of 9.6 mΩ at a gate-source voltage (VGS) of 10V and a drain current (ID) of 62A. It is 100% avalanche tested for reliability.

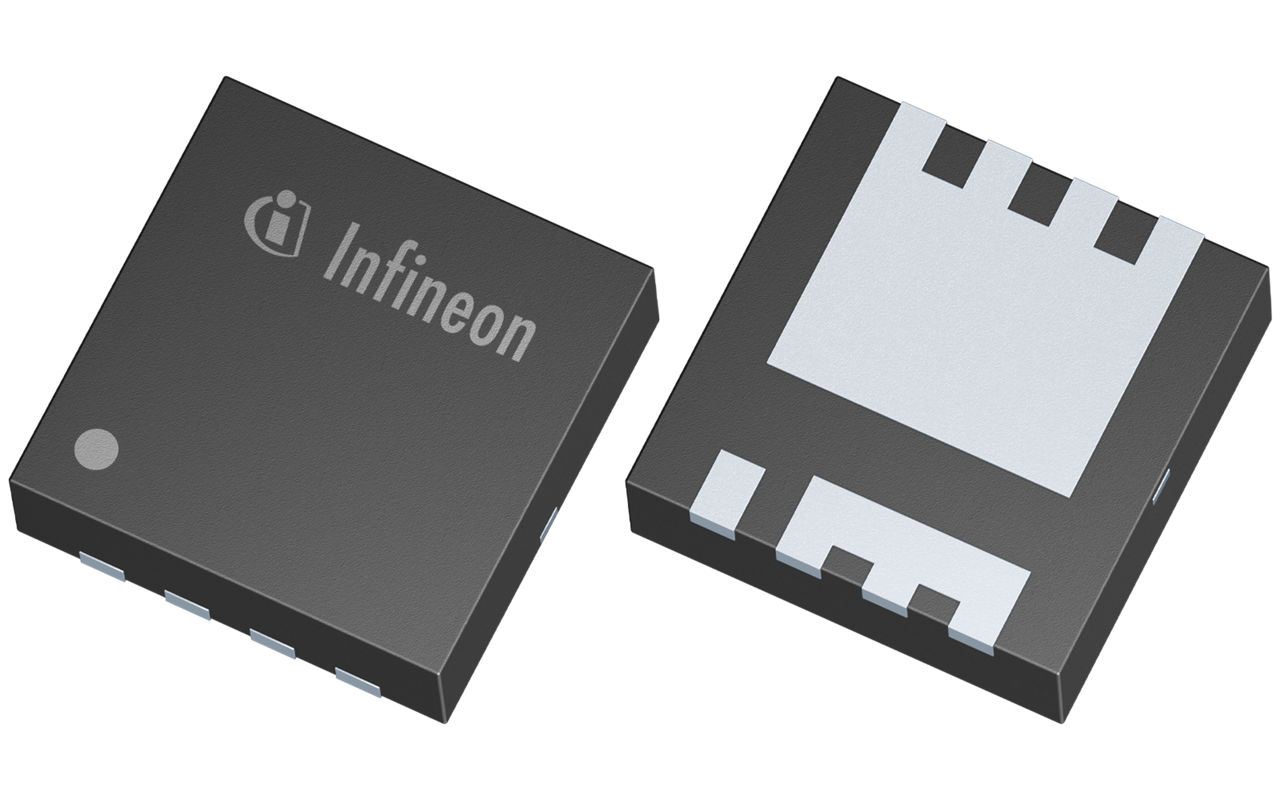

The BSZ096N10LS5 is housed in a PG-TSDSON-8 FL surface-mount package. It is Pb-free and RoHS compliant, and also Halogen-free, meeting stringent environmental standards. The MOSFET is qualified according to JEDEC for target applications.



Key electrical parameters include a continuous drain current of up to 62A at 25°C case temperature and a gate charge of 12 nC. The device is suitable for operation across a wide temperature range from -55°C to 150°C.

BSZ096N10LS5 Quick Information

Product Type: MOSFET
Series: OptiMOSTM5
Canonical Name: Infineon BSZ096N10LS5 N-channel MOSFET
Subcategory: N-channel MOSFET

BSZ096N10LS5 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: No

BSZ096N10LS5 Estimated Pricing

Qty Low High
1+ $2.40 $2.40

Estimated market price range - modelled values for guidance only, not live distributor offers.

BSZ096N10LS5 Features

  • 100V drain-source voltage rating.
  • Low 9.6 mΩ on-resistance.
  • High 62A continuous drain current.
  • Optimized for DC/DC converters.
  • Pb-free and Halogen-free.

BSZ096N10LS5 Applications

  • Ideal for high-frequency switching.
  • Optimized for DC/DC converters.
  • Suitable for power management circuits.

BSZ096N10LS5 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the maximum drain-source voltage for the BSZ096N10LS5?

The maximum drain-source voltage (VDS) is 100 V.

What is the maximum on-resistance of the BSZ096N10LS5 MOSFET?

The maximum on-resistance (RDS(on)) is 9.6 mΩ when VGS is 10V and ID is 62A.

What is the continuous drain current rating for the BSZ096N10LS5?

The continuous drain current (ID) is rated at 62 A at a case temperature of 25°C with VGS at 10V.

What package type is the BSZ096N10LS5 MOSFET supplied in?

The BSZ096N10LS5 is supplied in a PG-TSDSON-8 FL package.

Is the BSZ096N10LS5 RoHS compliant?

Yes, the BSZ096N10LS5 is RoHS3 Compliant.

What is the Moisture Sensitivity Level (MSL) for the BSZ096N10LS5?

The Moisture Sensitivity Level (MSL) is 1 Unlimited.

Does the BSZ096N10LS5 meet REACH regulations?

Yes, the REACH Status is Unaffected.
