| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5,000 pcs
|
5000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| FET Type | |
| Failure Rate | |
| Gate Charge | |
| Industrial Grade | |
| Input Capacitance | |
| Lead Spacing | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Operating Temperature | |
| Supplier Device Package | |
| Tape & Reel | |
| Technology |
The BSZ065N03LSATMA1 from Infineon Technologies is an N-Channel MOSFET designed for power applications. It offers a maximum drain-source voltage (Vds) of 30V and a continuous drain current (Id) of 12A at 25°C ambient temperature, or 40A at 25°C case temperature.
This MOSFET boasts a low on-resistance (Rds On) of 6.5 mOhm when measured at 20A drain current and 10V gate-source voltage. The gate threshold voltage (Vgs(th)) is 2V at 250µA. It operates within a junction temperature range of -55°C to 150°C.

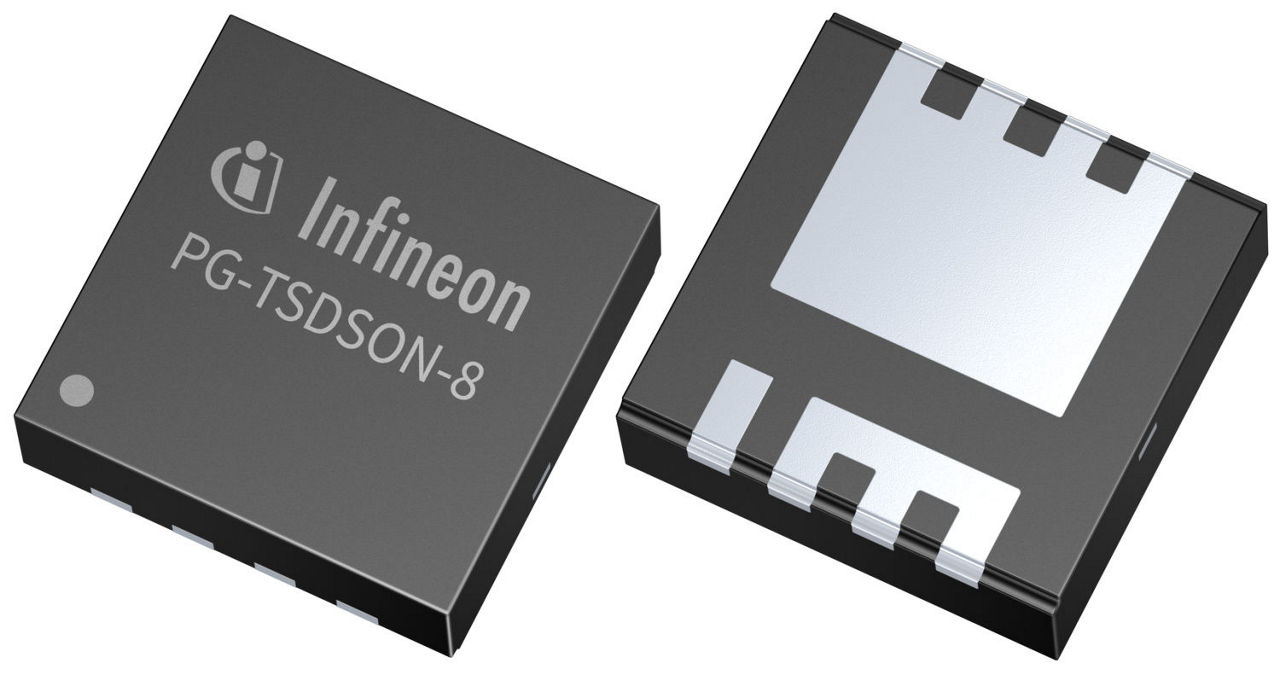

The device is packaged in a TSDSON-8 or 8-PowerTDFN surface-mount package, supplied in Cut Tape (CT). The mounting type is surface mount, and it has a standard package quantity of 500 pieces.
Key electrical characteristics include a maximum gate-to-source voltage of ±20V, input capacitance of 670pF at 15V, and a gate charge of 10nC at 10V. Power dissipation is rated at 2.1W (Ta) and 26W (Tc).
| Qty | Low | High |
|---|---|---|
| 1+ | $1.22 | $1.22 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The drain-source voltage (Vds) for the BSZ065N03LSATMA1 is 30V.
The continuous drain current (Id) is 12A at 25°C ambient temperature and 40A at 25°C case temperature.
The maximum on-resistance (Rds On) is 6.5 mOhm at 20A drain current and 10V gate-source voltage.
The operating temperature range (TJ) is -55°C to 150°C.
The BSZ065N03LSATMA1 is supplied in a TSDSON-8 or 8-PowerTDFN surface mount package.
The RoHS status is RoHS3 Compliant.
The Moisture Sensitivity Level (MSL) is 1 Unlimited.
