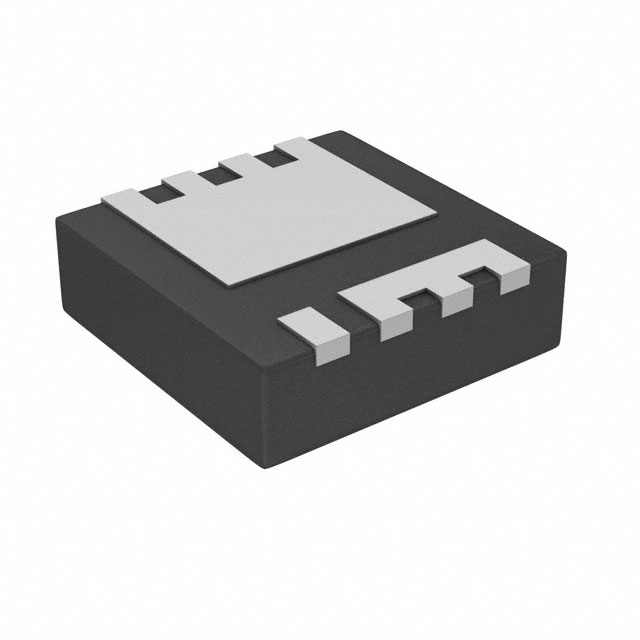

The BSZ034N04LSATMA1 is an N-channel enhancement mode MOSFET from Infineon Technologies, designed for power management applications. It features a drain-source voltage rating of 40V and a continuous drain current of 19A at ambient temperature (25°C) or 40A at case temperature (25°C). The device employs advanced MOSFET technology to achieve a low maximum on-resistance of 3.4 mOhm at 20A and 10V gate drive, reducing conduction losses.
Key electrical characteristics include a maximum gate charge of 25 nC at 10V, and an input capacitance of 1800 pF at 20V. The gate threshold voltage is 2V maximum at 250 µA, with recommended drive voltages of 4.5V for optimized on-resistance and 10V for full enhancement. Power dissipation is rated at 2.1W (ambient) and 52W (case temperature).
The MOSFET is housed in a surface mount 8-PowerTDFN package (PG-TSDSON-8-FL), suitable for compact PCB layouts. It is supplied in tape and reel packaging for automated assembly. The operating junction temperature range is -55°C to 150°C.
Compliance information indicates RoHS3 compliance, MSL Level 1, and REACH unaffected, though these are unverified and should be confirmed from official sources.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.91 | $1.91 |
| 10+ | $1.18 | $1.18 |
| 100+ | $0.78 | $0.78 |
| 500+ | $0.61 | $0.61 |
| 1,000+ | $0.52 | $0.52 |
| 2,500+ | $0.46 | $0.46 |
| 5,000+ | $0.39 | $0.39 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
40V.
8-PowerTDFN (PG-TSDSON-8-FL).
-55°C to 150°C.
It is marked as RoHS3 Compliant, but this is unverified.
Maximum 3.4 mOhm at 20A and 10V gate drive.
19A at ambient temperature (25°C) and 40A at case temperature (25°C).
Maximum 25 nC at 10V gate voltage.
