BSZ011NE2LS5I The Infineon BSZ011NE2LS5I is an N-channel MOSFET designed for high-performance buck converters. It features a low on-resistance and integrated Schottky-like diode.
Mfr Part #:

BSZ011NE2LS5I

Available from 1 distributors
Mfr Name: Infineon
Infineon
The Infineon BSZ011NE2LS5I is an N-channel MOSFET designed for high-performance buck converters. It features a low on-resistance and integrated Schottky-like diode.
✓ Total Stock: 750 pcs
$ Price Range: $2.40

BSZ011NE2LS5I Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Xingangxin ✓
Non-Authorised Inventory information
750 pcs
On Request
750 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

BSZ011NE2LS5I Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Gate Charge
Halogen Free
Mounting Type
Power Dissipation
View Similar Products (0)

BSZ011NE2LS5I Description

Short technical summary and product information.

The Infineon BSZ011NE2LS5I is an N-channel OptiMOSTM5 power transistor with a 25V drain-source voltage rating. It is optimized for high-performance buck converters and includes a monolithic integrated Schottky-like diode.



Key electrical specifications include a very low on-resistance of 1.1 mΩ at VGS=4.5V and a maximum continuous drain current of 202A at TC=25°C with VGS=10V. The device is 100% avalanche tested, ensuring reliability.

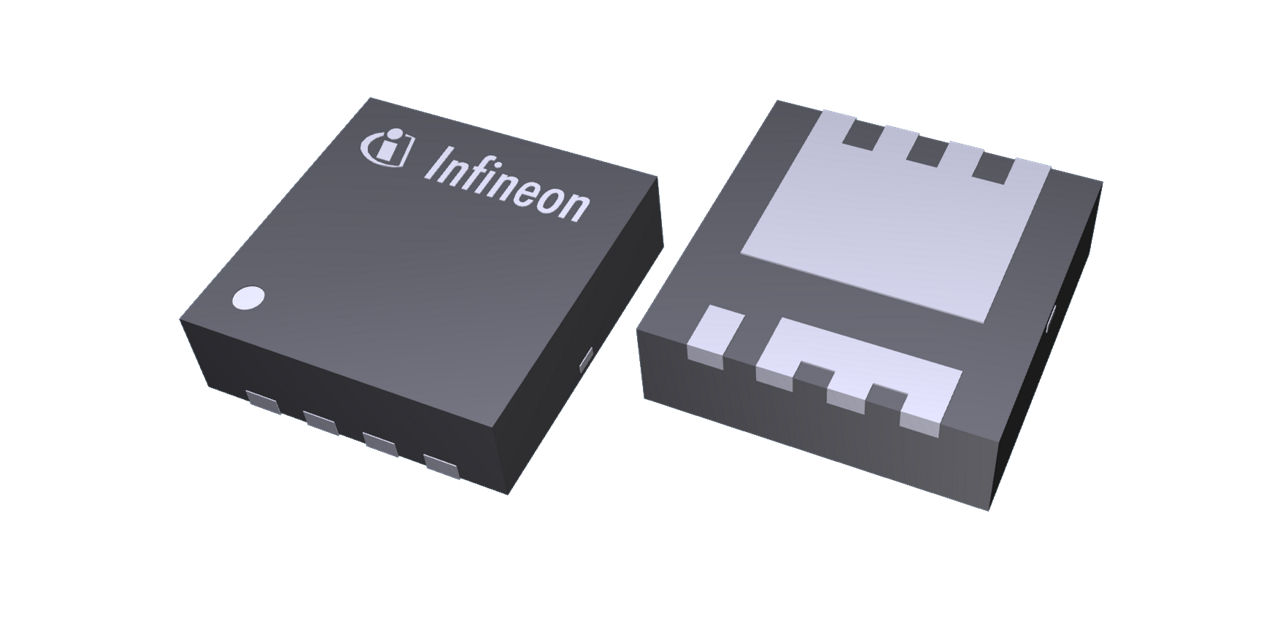

Packaged in a TSDSON-8 surface-mount package, this MOSFET is suitable for various industrial applications. It is Pb-free and Halogen-free, compliant with RoHS and IEC61249-2-21 standards.

BSZ011NE2LS5I Quick Information

Product Type: MOSFET
Series: OptiMOSTM5
Canonical Name: Infineon BSZ011NE2LS5I N-Channel Power MOSFET
Subcategory: N-Channel

BSZ011NE2LS5I Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: No

BSZ011NE2LS5I Estimated Pricing

Qty Low High
1+ $2.40 $2.40

Estimated market price range - modelled values for guidance only, not live distributor offers.

BSZ011NE2LS5I Features

  • Optimized for high-performance buck converters.
  • Integrated Schottky-like diode.
  • Very low on-resistance.
  • 100% avalanche tested.
  • Pb-free and Halogen-free.

BSZ011NE2LS5I Applications

  • Optimized for high performance buck converters.
  • Ideal for synchronous rectification circuits.
  • Suitable for high current DC-DC conversion.
  • Used in industrial power management systems.

BSZ011NE2LS5I FAQs

7 frequently asked questions generated from this part’s specifications.
What is the maximum drain-source voltage for the BSZ011NE2LS5I?

The maximum drain-source voltage (VDS) is 25V.

What is the on-resistance of the BSZ011NE2LS5I at VGS=4.5V?

The maximum on-resistance (RDS(on)) is 1.1 mΩ at a gate-source voltage (VGS) of 4.5V.

What is the continuous drain current rating for the BSZ011NE2LS5I?

The continuous drain current (ID) is rated at 202A when VGS is 10V and the case temperature (TC) is 25°C.

What is the package type for the BSZ011NE2LS5I MOSFET?

The BSZ011NE2LS5I is supplied in a PG-TSDSON-8 package.

Is the BSZ011NE2LS5I RoHS compliant?

The RoHS status is listed as RoHS3 Compliant.

What is the Moisture Sensitivity Level (MSL) for this part?

The Moisture Sensitivity Level (MSL) is 1 Unlimited.

Does the BSZ011NE2LS5I meet Halogen-Free requirements?

Yes, the component is Halogen-free.
