| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
778 pcs
|
778 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Length | |
| Contact Material | |
| Contact Type | |
| Fastening Type | |
| Halogen Free | |
| Insertion Depth | |
| Insulation Color | |
| Insulation Height | |
| Insulation Resistance | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| SVHC Present | |
| Style | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Withstanding Voltage |

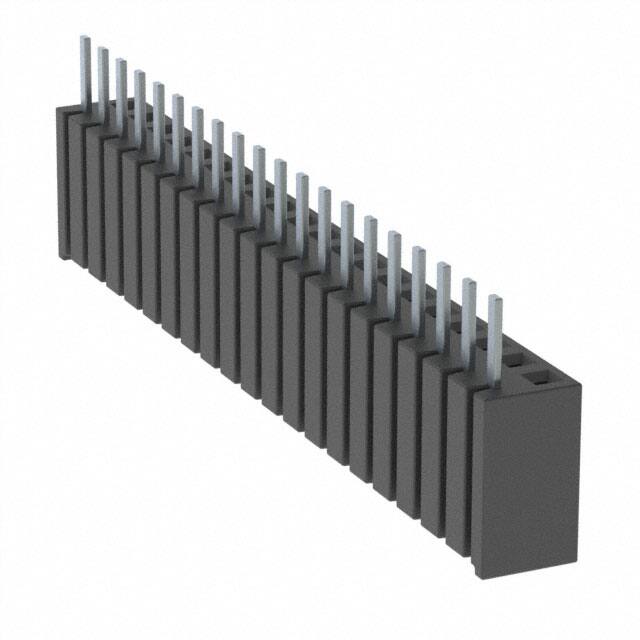

The Samtec BSW-120-04-T-S is a bottom mount socket strip from the BSW series. It features 20 positions in a single row with a 2.54mm (0.100") pitch. The receptacle accepts .025" square terminals and is designed for through hole bottom mount soldering, suitable for wave soldering only. Contacts are made of phosphor bronze with a matte tin plating, providing reliable performance. The insulator is black thermoplastic with a UL94 V-0 flammability rating. Electrical specifications include an insulation resistance of 5000 MΩ minimum and a withstanding voltage of 1000 VRMS at 60 Hz. The operating temperature range is -55°C to +105°C for tin plating. The insertion depth ranges from 3.68mm to 6.35mm plus board thickness. This connector is ideal for board-to-board stacking applications where low profile and high temperature soldering are required. It mates with Samtec's TSW, MTSW, HTSW, MTLW, TSM, EW, ZW, HW, DW, and PHT series terminal strips.
20 positions, all loaded.
2.54mm (0.100").
Through hole, bottom mount, solder termination.
1000 VRMS at 60 Hz.
-55°C to +105°C.
Phosphor bronze with matte tin plating over 50 µ" nickel.
RoHS3 Compliant (unverified, low confidence).
