| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
137 pcs
|
137 pcs | On Request | 1 | On Request | On Request | 625 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Length | |
| Contact Material | |
| Contact Type | |
| Fastening Type | |
| Halogen Free | |
| Insulation Color | |
| Insulation Height | |
| Insulation Resistance | |
| Insulator Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| SVHC Present | |
| Style | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Withstanding Voltage |

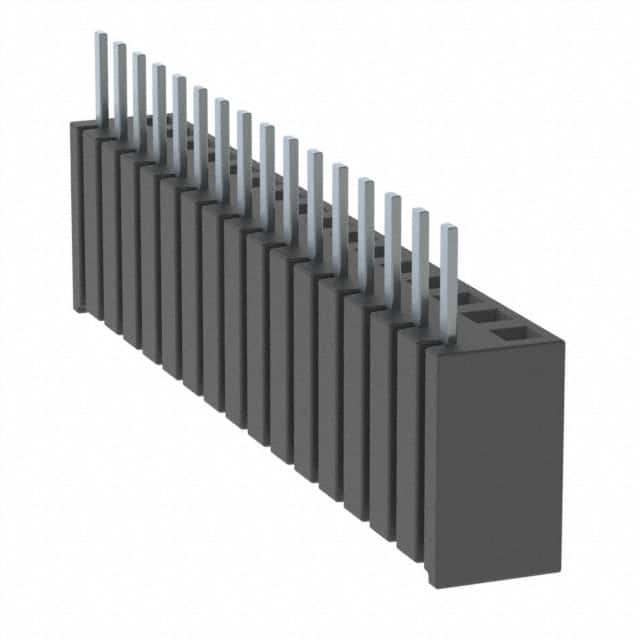

The Samtec BSW-116-04-T-S is a 16 position single row bottom mount socket strip from the BSW series. It features a 2.54 mm (0.100 inch) pitch and tin plated phosphor bronze contacts. The insulator is black thermoplastic rated UL94 V-0.
This receptacle accepts 0.025 inch square terminals and is designed for through hole bottom mount soldering. It is suitable for board-to-board applications where soldering and plugging occur on the same side of the board.
Electrical specifications include 5000 MΩ minimum insulation resistance and a withstanding voltage of 1000 VRMS at 60 Hz. The operating temperature range is -55°C to +105°C with tin plating.
16 positions, all loaded, single row.
2.54 mm (0.100 inch).
Through hole, bottom mount with solder termination.
-55°C to +105°C with tin plating.
Phosphor bronze contact material with tin plating.
5000 MΩ minimum.
1000 VRMS at 60 Hz.
