| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
624 pcs
|
624 pcs | On Request | 1 | On Request | On Request | 612 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| California Proposition 65 | |
| China RoHS | |
| Connector Type | |
| Contact Finish | |
| Contact Length | |
| Contact Material | |
| Contact Type | |
| Fastening Type | |
| Halogen Free | |
| Insertion Depth | |
| Insulation Color | |
| Insulation Height | |
| Insulation Resistance | |
| Insulator Material | |
| Lead Spacing | |
| Lead Style | |
| Lead-Free Solderable | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Orientation | |
| PFAS | |
| Packaging Type | |
| Pitch | |
| Row Spacing | |
| SVHC Present | |
| Style | |
| Tape & Reel | |
| Termination | |
| UL | |
| Withstanding Voltage |

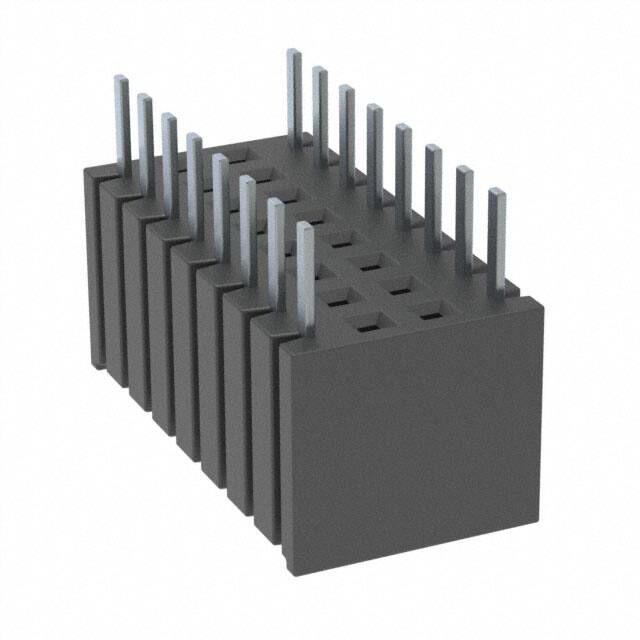

The Samtec BSW-108-04-T-D is a 16-position, double-row bottom entry socket strip designed for board-to-board stacking applications. It features a 2.54mm (0.100") pitch and tin-plated phosphor bronze contacts, ensuring reliable electrical connections. The insulator is made of black thermoplastic with a UL94 V-0 flammability rating, providing robust mechanical support.
This socket strip uses a through-hole bottom mount configuration, allowing it to be mounted on the underside of the PCB for ultra-low profile designs. The push-pull fastening type ensures secure mating with compatible headers such as TSW, MTSW, and HTSW series. The operating temperature range is -55°C to 105°C for tin plating, with a minimum insulation resistance of 5000 MΩ and a withstanding voltage of 1000 VRMS at 60 Hz.
Designed for wave soldering only, the BSW-108-04-T-D is lead-free solderable and complies with RoHS3, REACH, and UL standards (E111594). It is packaged in bulk and suitable for applications requiring low-profile connections and high-temperature soldering processes.
It has 16 positions arranged in 2 rows, with all positions loaded.
The pitch is 2.54mm (0.100").
Through hole, bottom mount.
Minimum 1000 VRMS at 60 Hz.
-55°C to 105°C for tin plating.
Minimum 5000 MΩ.
Phosphor bronze contacts with tin plating.
