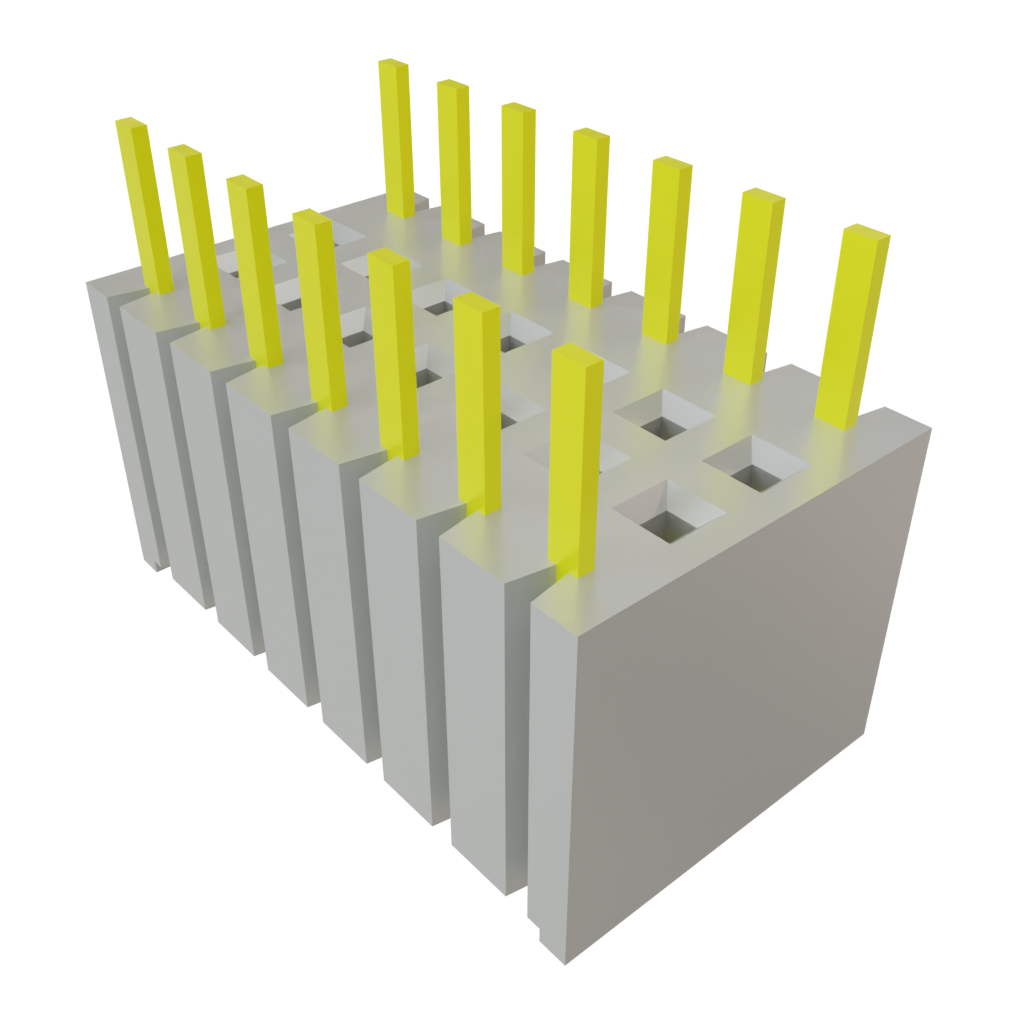

BSW-107-04-GD The Samtec BSW-107-04-G-D is a 14-position, 2-row socket strip receptacle with a 2.54mm pitch. It features through-hole mounting and 20µin gold/flash contact plating.
Mfr Part #:

BSW-107-04-GD

Available from 1 distributors
Mfr Name: N-A
N-A
The Samtec BSW-107-04-G-D is a 14-position, 2-row socket strip receptacle with a 2.54mm pitch. It features through-hole mounting and 20µin gold/flash contact plating.
✓ Total Stock: 352 pcs
$ Price Range: $1.00

BSW-107-04-GD Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Husky International Electronic ✓
Non-Authorised Inventory information
352 pcs
On Request
352 pcs On Request 1 On Request On Request N/A On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

BSW-107-04-GD Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Contact Plating
Halogen Free
Lead Spacing
Lead Style
Mounting Type
Number of Positions
Number of Rows
Pitch
Prop 65
SVHC Present
Tape & Reel
View Similar Products (0)

BSW-107-04-GD Description

Short technical summary and product information.

The Samtec BSW-107-04-G-D is a vertical socket strip receptacle designed for low-profile applications. It offers 14 positions arranged in two rows, with a standard pitch of 0.100 inches (2.54 mm).



This component features through-hole termination for secure PCB mounting. The contacts are plated with 20µin of gold over flash, ensuring reliable electrical connections. The BSW series is known for its flexible stacking capabilities and low profile, making it suitable for mounting on the underside of PCBs.



Key specifications include a 2.54mm pitch and 14 positions. The contact system utilizes Samtec's Tiger Buy™ technology. This receptacle is designed for applications requiring a compact and dependable interconnect solution.

BSW-107-04-GD Quick Information

Product Type: Socket Strip Receptacle
Series: BSW
Canonical Name: Samtec BSW-107-04-G-D Socket Strip Receptacle
Subcategory: IC Sockets

BSW-107-04-GD Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): Not Moisture Sensitive
REACH Status: REACH Unaffected

BSW-107-04-GD Estimated Pricing

Qty Low High
1+ $1.00 $1.00

Estimated market price range - modelled values for guidance only, not live distributor offers.

BSW-107-04-GD Features

  • 14 positions in a 2-row configuration.
  • 0.100 inch (2.54 mm) pitch.
  • Through-hole termination style.
  • 20µin gold/flash contact plating.
  • Low profile, bottom mount design.

BSW-107-04-GD Applications

  • Sockets for DIP ICS and microcontrollers.
  • Prototyping and breadboarding applications.
  • Used in test and measurement equipment.
  • Ideal for industrial control modules.

BSW-107-04-GD FAQs

6 frequently asked questions generated from this part’s specifications.
How many positions does the BSW-107-04-GD have?

14 positions in a 2-row configuration.

What is the pitch of the BSW-107-04-GD?

2.54 mm (0.100 inches).

What is the mounting type?

Through-hole mounting.

What is the contact plating material and thickness?

20 μin gold/flash plating.

What is the packaging type?

Bulk packaging.

How many rows does the socket have?

2 rows.
