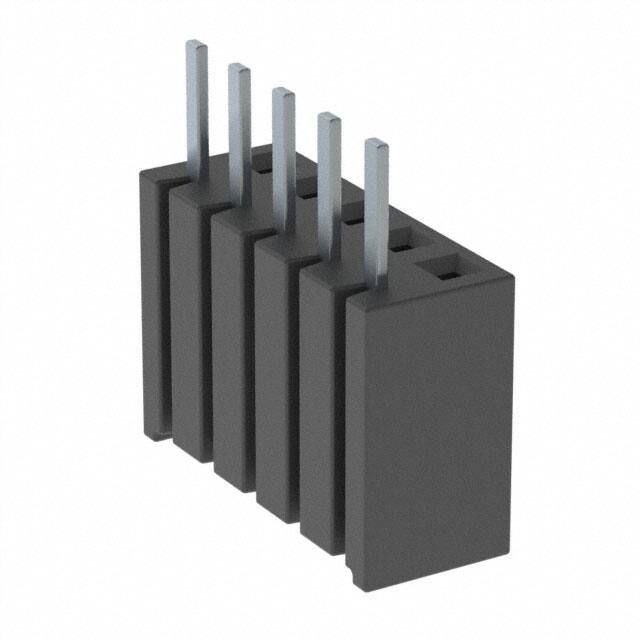

Samtec BSW-105-04-T-S is a 5-position single row bottom entry socket strip from the BSW series. It features a 2.54mm (0.100") pitch and through hole mounting with solder termination. The connector uses female socket contacts with tin plating over 50 µ" nickel, and the insulator is black thermoplastic rated UL94 V-0. It is designed for board-to-board applications, allowing low profile connections by mounting on the underside of the PCB. The operating temperature range is -55°C to +105°C with tin plating. Electrical characteristics include minimum insulation resistance of 5000 MΩ and withstanding voltage of 1000 VRMS at 60 Hz. The insertion depth ranges from 3.68mm to 6.35mm plus board thickness. This part is lead-free solderable via wave soldering process. The BSW series mates with Samtec header strips such as TSW, MTSW, HTSW, and others.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.15 | $1.15 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
5 positions.
2.54mm (0.100").
Through hole, bottom mount.
-55°C to +105°C with tin plating.
Tin.
5000 MΩ minimum.
1000 VRMS at 60 Hz.
