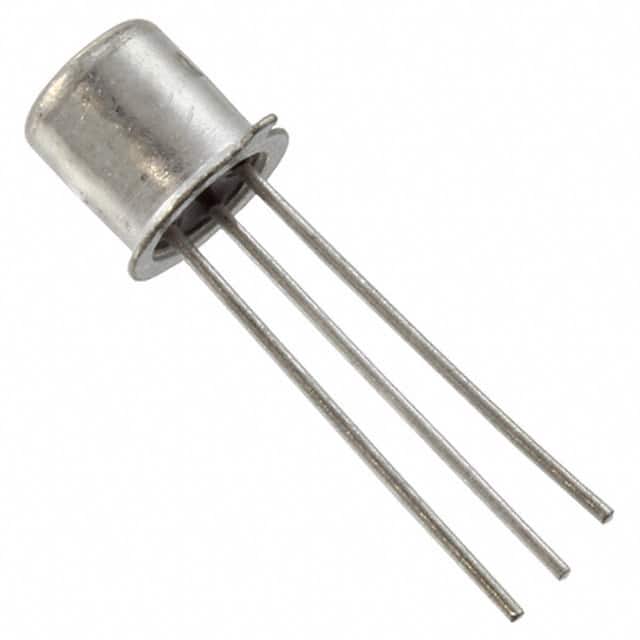

BSV80 N-Channel JFET designed for switching applications. Key specs: 40V Vdss, 10mA IDSS, TO-18 through-hole package.
Mfr Part #:

BSV80

Available from 1 distributors
Mfr Name: Central Semiconductor Corp
Central Semiconductor Corp
N-Channel JFET designed for switching applications. Key specs: 40V Vdss, 10mA IDSS, TO-18 through-hole package.
✓ Total Stock: 2,356 pcs

BSV80 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Components Technology Group, Inc. ✓
Non-Authorised Inventory information
2,356 pcs
On Request
2356 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

BSV80 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Drain to Source Voltage (Vdss)
FET Type
Input Capacitance (Ciss) (Max) @ Vds
Lead Style
Mounting Type
Operating Temperature
Power
Resistance
Storage Temperature
Supplier Device Package
Voltage
View Similar Products (0)

BSV80 Description

Short technical summary and product information.

The BSV80 is an N-Channel JFET from Central Semiconductor Corp, designed for switching applications. It features a maximum drain-source voltage of 40V and a minimum drain current of 10mA. The device offers low gate leakage current of 0.25nA and low input capacitance of 5pF, making it suitable for high-speed switching. The drain-source on resistance is 60Ω maximum. It comes in a TO-18 metal can package (TO-206AA, TO-18-3) with through-hole mounting. The operating temperature range is -65°C to 175°C, and maximum power dissipation is 350mW. Thermal resistance from junction to ambient is 430°C/W.

BSV80 Quick Information

Product Type: JFET
Canonical Name: Central Semiconductor BSV80 N-Channel JFET
Subcategory: Transistors - JFETs

BSV80 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): Vendor Undefined
REACH Status: REACH Unaffected

BSV80 Features

  • N-Channel JFET for switching applications.
  • 40V maximum drain-source voltage.
  • 10mA minimum drain current.
  • Low input capacitance of 5pF.
  • Through-hole TO-18 metal can package.

BSV80 Applications

  • Used in analog switching circuits.
  • Suitable for low-level signal switching.
  • Ideal for high-speed switching applications.

BSV80 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the maximum drain-source voltage of the BSV80?

40V.

What package is the BSV80 available in?

TO-18 (TO-206AA, TO-18-3 Metal Can) through-hole package.

What is the operating temperature range?

-65°C to 175°C.

Is the BSV80 RoHS compliant?

RoHS3 Compliant (unverified).

What is the gate-source cutoff voltage?

1.0V to 5.0V.

What is the drain-source on resistance?

60Ω maximum.

What is the input capacitance?

5pF maximum.
