| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Current | |
| Drain to Source Voltage (Vdss) | |
| Drive Voltage (Max Rds On, Min Rds On) | |
| FET Type | |
| Input Capacitance (Ciss) (Max) @ Vds | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Operating Temperature | |
| Power Dissipation (Max) | |
| Rds On (Max) @ Id, Vgs | |
| Storage Temperature | |
| Supplier Device Package | |
| Tape & Reel | |
| Technology | |
| Vgs (Max) | |
| Vgs(th) (Max) @ Id |

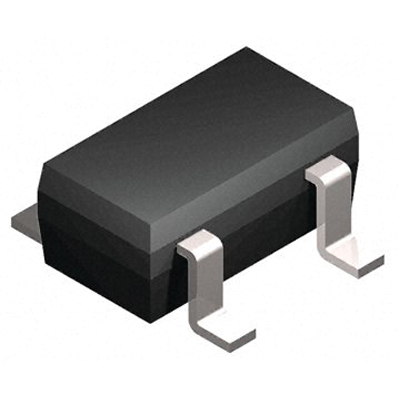

The BSS84LT1G is a P-Channel enhancement-mode MOSFET from On Semiconductor, designed for low-power switching applications. It is housed in a compact SOT-23-3 surface-mount package, saving board space. The device offers a maximum drain-source voltage of -50V and a continuous drain current of -130mA at 25°C ambient temperature. With a maximum on-resistance of 10 Ohm at VGS = -5V, it provides efficient switching for low-current loads.
This MOSFET features a gate threshold voltage range of -0.9V to -2.0V, making it suitable for logic-level drive circuits. The input capacitance is typically 30 pF at VDS = 5V, enabling fast switching. The device is Pb-Free and RoHS compliant, meeting environmental standards.
The BSS84LT1G is ideal for battery management, load switching, and power management in portable devices. Its small footprint and low power dissipation of 225 mW make it a good fit for space-constrained designs. The operating temperature range from -55°C to 150°C ensures reliability in harsh environments.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.32 | $0.32 |
| 10+ | $0.19 | $0.19 |
| 100+ | $0.12 | $0.12 |
| 500+ | $0.09 | $0.09 |
| 1,000+ | $0.08 | $0.08 |
| 3,000+ | $0.08 | $0.08 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum drain-source voltage is -50V (minimum breakdown voltage).
The BSS84LT1G is available in a SOT-23-3 surface mount package, also known as TO-236-3 or SC-59.
The operating temperature range is -55°C to 150°C (junction temperature).
Yes, the BSS84LT1G is RoHS compliant and Pb-Free as verified by the datasheet.
The continuous drain current is -130 mA at TA = 25°C.
The typical on-resistance is 4.7 Ohm, with a maximum of 10 Ohm at VGS = -5V and ID = -100 mA.
The maximum power dissipation is 225 mW at TA = 25°C.
