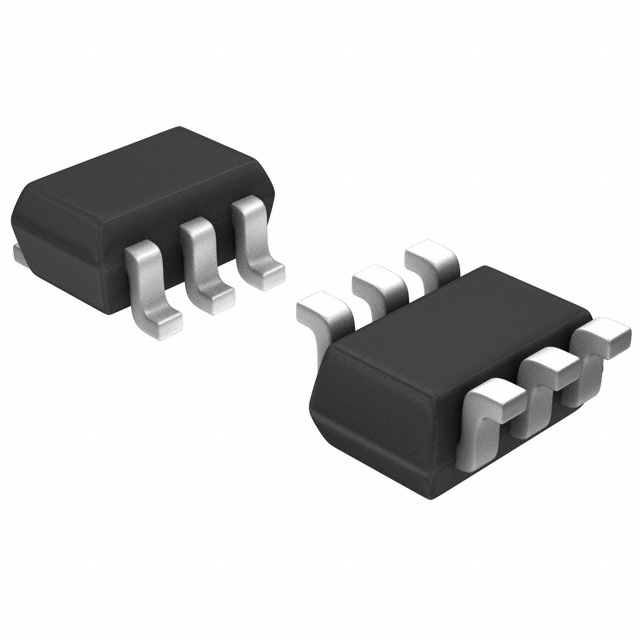

BSS138DWQ-13 Dual N-Channel Enhancement Mode MOSFET, 50V drain-source voltage, 200mA continuous drain current. Low on-resistance of 3.5 Ohm at 10V gate drive, housed in a SOT-363 package.
Mfr Part #:

BSS138DWQ-13

Available from 2 distributors
Mfr Name: Diodes Incorporated
Diodes Incorporated
Dual N-Channel Enhancement Mode MOSFET, 50V drain-source voltage, 200mA continuous drain current. Low on-resistance of 3.5 Ohm at 10V gate drive, housed in a SOT-363 package.
✓ Total Stock: 211,020 pcs
$ Price Range: $0.15 - $0.65

BSS138DWQ-13 Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Optech Co.,Limited ✓
Non-Authorised Inventory information
131,020 pcs
On Request
131020 pcs On Request 1 On Request On Request On Request On Request On Request
Seba Components ✓
Non-Authorised Inventory information
80,000 pcs
On Request
80000 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

BSS138DWQ-13 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
AEC Qualified
Automotive Grade
Configuration
Current
Drain to Source Voltage (Vdss)
Halogen Free
Input Capacitance (Ciss) (Max) @ Vds
Mounting Type
Operating Temperature
Power
Rds On (Max) @ Id, Vgs
Supplier Device Package
Tape & Reel
Technology
Vgs(th) (Max) @ Id
Weight
View Similar Products (0)

BSS138DWQ-13 Description

Short technical summary and product information.

The BSS138DWQ-13 is a dual N-Channel enhancement mode MOSFET from Diodes Incorporated, designed for low on-resistance and fast switching in power management applications. With a maximum drain-source voltage of 50V and continuous drain current of 200mA, it offers a typical on-resistance of 3.5 Ohm at 10V gate-source voltage. The device features low gate threshold voltage (1.5V max) and low input capacitance (50pF), enabling efficient switching at high frequencies. It is AEC-Q101 qualified and PPAP capable, suitable for automotive applications requiring stringent change control. The MOSFET is housed in a SOT-363 surface-mount package, with a matte tin finish and UL 94V-0 molded plastic material. It is RoHS3 compliant, lead-free, and halogen-free (Green). The operating temperature range is -55°C to 150°C. The BSS138DWQ-13 is ideal for load switches, DC-DC converters, and other circuits requiring small footprint dual MOSFETs.

BSS138DWQ-13 Quick Information

Product Type: MOSFET Array
Series: BSS138
Canonical Name: BSS138DWQ-13 - Dual N-Channel Enhancement Mode Field Effect Transistor, 50V, 200mA, SOT-363
Subcategory: Dual N-Channel

BSS138DWQ-13 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): Level 1 (Unlimited)
REACH Status: REACH Unaffected
Lead Free: Lead-Free

BSS138DWQ-13 Estimated Pricing

Qty Low High
1+ $0.65 $0.65
10+ $0.29 $0.29
100+ $0.26 $0.26
1,000+ $0.19 $0.19
2,500+ $0.17 $0.17
5,000+ $0.15 $0.15
10,000+ $0.15 $0.15

Estimated market price range - modelled values for guidance only, not live distributor offers.

BSS138DWQ-13 Features

  • Dual N-Channel enhancement mode MOSFET.
  • 50V maximum drain-source voltage rating.
  • 200mA continuous drain current capability.
  • Low on-resistance of 3.5 Ohm at 10V gate drive.
  • AEC-Q101 qualified for automotive applications.

BSS138DWQ-13 Applications

  • Ideal for load switching in portable electronics.
  • Used in DC-DC converter circuits.
  • Suitable for signal switching in low-power applications.
  • Designed for automotive power management systems.

BSS138DWQ-13 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the package type of the BSS138DWQ-13?

SOT-363 (6-TSSOP, SC-88, SOT-363).

What is the operating temperature range of the BSS138DWQ-13?

-55°C to 150°C (junction).

Is the BSS138DWQ-13 RoHS compliant?

Yes, it is RoHS3 compliant, lead-free, and halogen-free (Green).

What is the maximum drain-source voltage of the BSS138DWQ-13?

50V.

What is the maximum continuous drain current of the BSS138DWQ-13?

200mA.

What is the on-resistance of the BSS138DWQ-13?

3.5 Ohm maximum at 220mA, 10V gate drive.

Is the BSS138DWQ-13 qualified for automotive applications?

Yes, it is AEC-Q101 qualified and PPAP capable.
