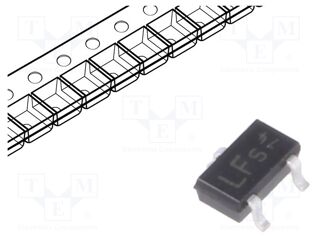

The Infineon BSR315PH6327XTSA1 is a P-Channel enhancement mode MOSFET designed for small-signal applications. It features a maximum drain-source voltage of -60V and a continuous drain current of 620mA at 25°C. The device offers low on-resistance: 800mΩ max at VGS=-10V and 1300mΩ max at VGS=-4.5V, making it suitable for logic-level drive.
This MOSFET is avalanche rated and qualified to AEC Q101, ensuring reliability in automotive environments. It is also RoHS compliant and halogen free according to IEC61249-2-21. The gate threshold voltage is typically 1.5V with a maximum of 2V, allowing easy drive from low-voltage logic.
The device is housed in a surface mount SC59 package (PG-SC59-3), which is footprint compatible with SOT-23 and SuperSOT-23 packages. It is supplied in tape and reel with 3000 pieces per reel, suitable for automated assembly.
Typical applications include load switching, power management, and battery-powered devices where low current consumption and small footprint are required. The low gate charge (typical 4nC) and fast switching speeds (turn-on/off delay times 8ns/21ns) make it efficient for switching circuits.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.92 | $0.92 |
| 10+ | $0.57 | $0.57 |
| 100+ | $0.37 | $0.37 |
| 500+ | $0.28 | $0.28 |
| 1,000+ | $0.26 | $0.26 |
| 3,000+ | $0.22 | $0.22 |
| 9,000+ | $0.21 | $0.21 |
| 24,000+ | $0.19 | $0.19 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum drain-source voltage (Vdss) is 60V.
It comes in a surface mount SC59 package (also known as TO-236-3 / SOT-23-3, supplier package PG-SC59-3).
The operating junction temperature range is -55°C to 150°C.
Yes, it is RoHS compliant and also halogen free according to IEC61249-2-21.
Yes, it is qualified according to AEC Q101.
