| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
20,000 pcs
|
20000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | 2026-02-16 21:33:16 | |
|
6,750 pcs
|
6750 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
2,517 pcs
|
2517 pcs | On Request | 1 | On Request | On Request | 21+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Fault Protection | |
| Input Type | |
| Interface | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Configuration | |
| Output Type | |
| Ratio | |
| Rds On (Typ) | |
| Supplier Device Package | |
| Switch Type | |
| Voltage |
The Infineon Technologies BSP752TXUMA1 is a smart high-side power switch designed for 12V, 24V, and 42V DC applications. It replaces electromechanical relays and discrete circuits, offering integrated protective functions such as current limiting, over-temperature, and over-voltage protection.

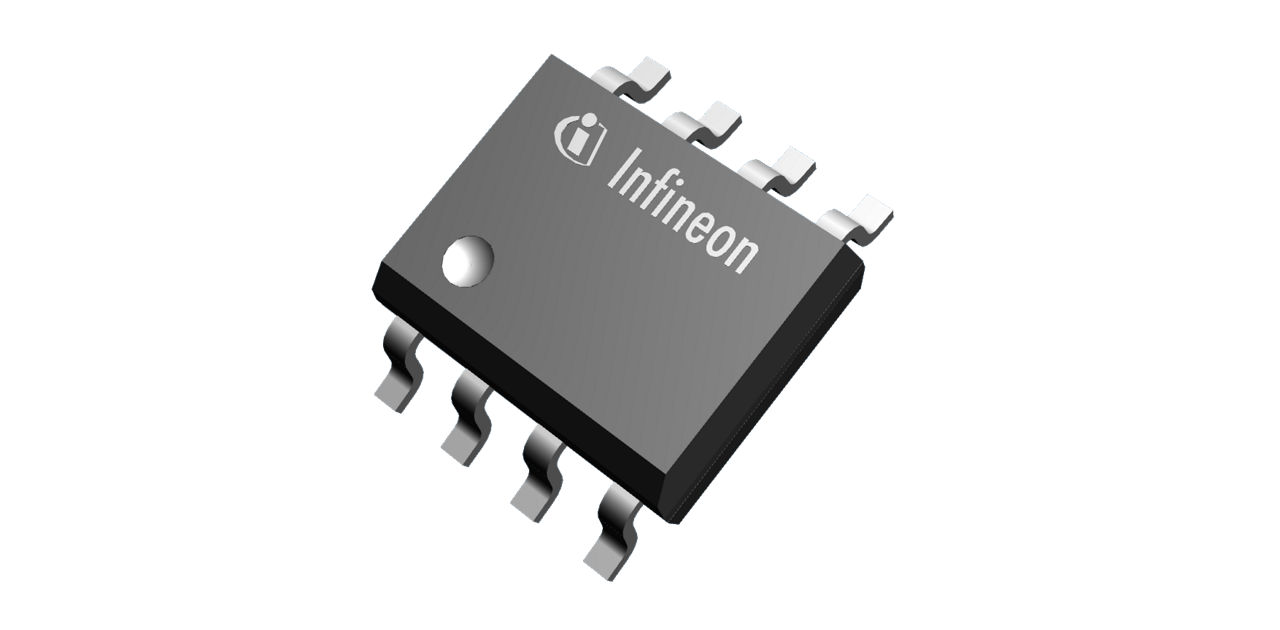

This N-channel power FET is housed in a PG-DSO-8-24 package, suitable for surface mounting. It operates with an input type of Non-Inverting and provides a high-side output configuration. The device features a typical Rds On of 150 mOhm and can handle a current of 1.3A. Its operating temperature range is -40°C to 150°C (TJ).
The BSP752TXUMA1 is compatible with µC and is designed for general-purpose switching applications. It offers a simple On/Off interface and a 1:1 ratio.
Key specifications include a 1.3A current capability, 150 mOhm typical Rds On, and a wide operating temperature range. The component is supplied in an 8-SOIC package suitable for surface mounting.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.07 | $2.07 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
1.3A.
150 mOhm.
-40°C to 150°C.
PG-DSO-8-24 (8-SOIC, 0.154" width, 3.90mm width).
Current limiting (fixed), over-temperature, and over-voltage protection.
High-side, N-channel output with on/off interface.
