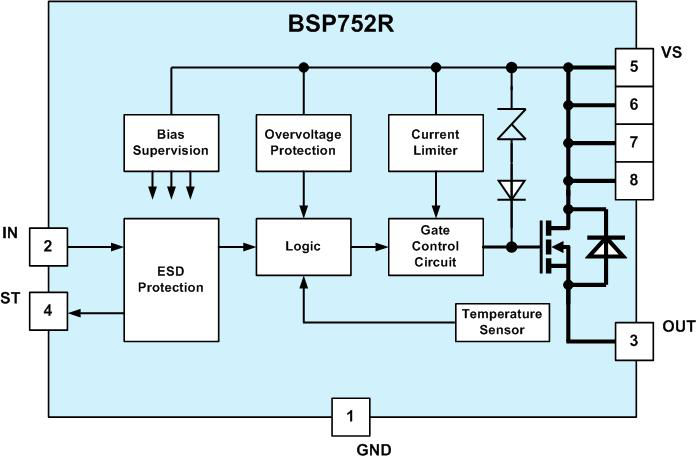

BSP752R The Infineon BSP752R is a smart high-side power switch designed for 12V, 24V, and 42V DC applications. It offers integrated protective functions and a nominal load current of 1.3A.
Mfr Part #:

BSP752R

Available from 3 distributors
Mfr Name: Infineon
Infineon
The Infineon BSP752R is a smart high-side power switch designed for 12V, 24V, and 42V DC applications. It offers integrated protective functions and a nominal load current of 1.3A.
✓ Total Stock: 1,583 pcs
$ Price Range: $0.32

BSP752R Available from 3 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Xingangxin ✓
Non-Authorised Inventory information
1,397 pcs
On Request
1397 pcs On Request 1 On Request On Request On Request On Request On Request
Braun Electronic Components ✓
Non-Authorised Inventory information
166 pcs
On Request
166 pcs On Request 1 On Request On Request On Request On Request On Request
Spartce Electronics. ✓
Non-Authorised Inventory information
20 pcs
On Request
20 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

BSP752R Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Halogen Free
Operating Voltage
SVHC Present
View Similar Products (0)

BSP752R Description

Short technical summary and product information.

The Infineon BSP752R is an N-channel vertical power FET integrated into Smart SIPMOS® technology, functioning as a smart high-side power switch. It is designed for automotive applications with operating voltages ranging from 6V to 52V, making it suitable for 12V, 24V, and 42V DC systems.



Key electrical characteristics include a nominal load current of 1.3A and an ON-state resistance of 200 mΩ. The device provides comprehensive protection features such as overload, current limitation, short circuit, and thermal shutdown with restart. It also includes overvoltage protection, fast demagnetization of inductive loads, and reverse battery protection.



The BSP752R is housed in a PG-DSO-8 package and is AEC Qualified. Its CMOS-compatible input and diagnostic feedback make it a versatile replacement for electromechanical relays and discrete circuits in various resistive, inductive, and capacitive load applications.

BSP752R Quick Information

Product Type: Smart High-Side Power Switch
Series: Classic PROFET™ 24V
Canonical Name: Smart High-Side Power Switch
Subcategory: Power Distribution Switches

BSP752R Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

BSP752R Estimated Pricing

Qty Low High
1+ $0.32 $0.32

Estimated market price range - modelled values for guidance only, not live distributor offers.

BSP752R Features

  • Integrated overload protection.
  • Current limitation and short circuit protection.
  • Thermal shutdown with restart.
  • Overvoltage protection up to 62V.
  • 200 mΩ ON-state resistance.

BSP752R Applications

  • Suitable for 12V, 24V, and 42V DC.
  • Drives resistive, inductive, capacitive loads.
  • Replaces electromechanical relays.
  • Used in automotive applications.

BSP752R FAQs

5 frequently asked questions generated from this part’s specifications.
What is the operating voltage range for the BSP752R?

The operating voltage range for the BSP752R is 6V to 52V.

What is the ON-state resistance of the BSP752R?

The ON-state resistance is 200 mΩ.

What is the nominal load current for the BSP752R?

The nominal load current is 1.3A.

What is the overvoltage protection rating for the BSP752R?

The overvoltage protection is rated at 62V.

What package type is the BSP752R supplied in?

The BSP752R is supplied in a PG-DSO-8 package.
