| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
43,800 pcs
|
43800 pcs | On Request | 1 | On Request | On Request | 1012+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Configuration | |
| Current | |
| Drain to Source Voltage (Vdss) | |
| Gate Charge (Qg) (Max) @ Vgs | |
| Input Capacitance (Ciss) (Max) @ Vds | |
| Mounting Type | |
| Operating Temperature | |
| Power | |
| Rds On (Max) @ Id, Vgs | |
| Supplier Device Package | |
| Tape & Reel | |
| Technology | |
| Vgs(th) (Max) @ Id |

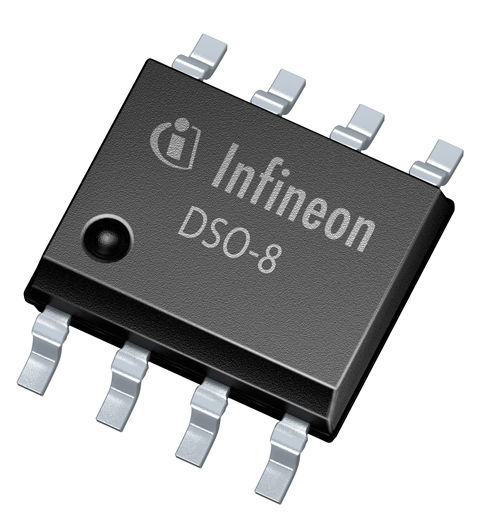

The BSO150N03 is a dual N-Channel enhancement mode power MOSFET from Infineon Technologies, housed in a surface-mount PG-DSO-8 package. It is designed for efficient power management in space-constrained applications.
Key electrical specifications include a maximum drain-to-source voltage (Vdss) of 30V and a nominal drain current (Id) of 7.6A. The device features a low maximum on-resistance (Rds On) of 15mOhm at a gate-source voltage of 10V and a drain current of 9.1A. The maximum gate charge (Qg) is 15nC at Vgs = 5V, and the maximum input capacitance (Ciss) is 1890pF at Vds = 15V.
The device operates over a junction temperature range of -55°C to 150°C and has a nominal power dissipation of 1.4W. It is supplied in an 8-SOIC (0.154", 3.90mm Width) package, also known as PG-DSO-8, and is intended for surface mount assembly. The technology is MOSFET (Metal Oxide).
| Qty | Low | High |
|---|---|---|
| 2,500+ | $0.64 | $0.64 |
| 5,000+ | $0.61 | $0.61 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum drain-to-source voltage (Vdss) is 30V.
The nominal drain current (Id) is 7.6A.
The maximum on-resistance is 15mOhm at a gate-source voltage of 10V and a drain current of 9.1A.
The operating junction temperature range is -55°C to 150°C.
The BSO150N03 is supplied in an 8-SOIC (0.154", 3.90mm Width) package, also known as PG-DSO-8.
The RoHS status is listed as RoHS3 Compliant, but this data is unverified and should be treated as low-confidence.
