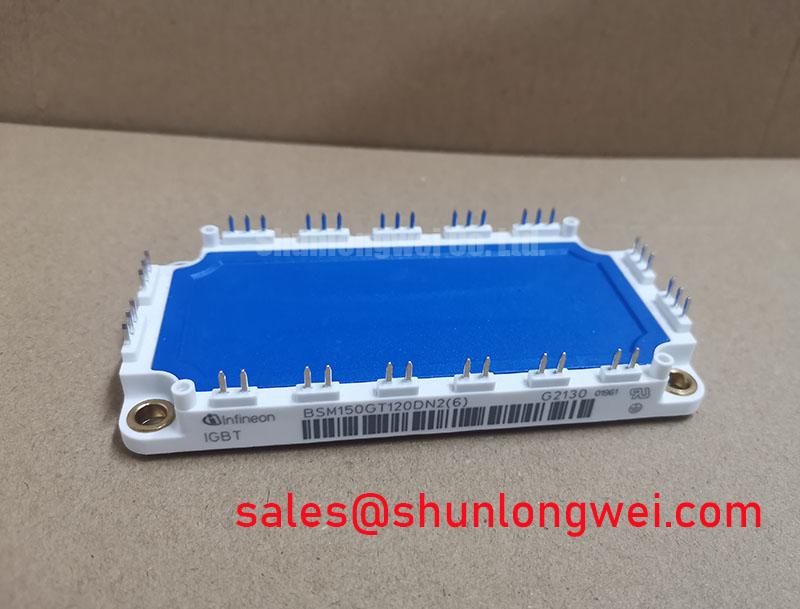

BSM150GT120DN2 The Infineon BSM150GT120DN2 is a 1200V, 150A Half-Bridge IGBT module. It utilizes NPT technology and features an integrated sixpack configuration for efficient power conversion.
Mfr Part #:

BSM150GT120DN2

Available from 1 distributors
Mfr Name: Infineon
Infineon
The Infineon BSM150GT120DN2 is a 1200V, 150A Half-Bridge IGBT module. It utilizes NPT technology and features an integrated sixpack configuration for efficient power conversion.
✓ Total Stock: 25 pcs
$ Price Range: $0.71

BSM150GT120DN2 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Fe Components ✓
Non-Authorised Inventory information
25 pcs
On Request
25 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

BSM150GT120DN2 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
AEC Qualified
Automotive Grade
Industrial Grade
Medical Grade
Military Grade
Storage Temperature
Tape & Reel
Topology
View Similar Products (0)

BSM150GT120DN2 Description

Short technical summary and product information.

The Infineon BSM150GT120DN2(6) is a robust Half-Bridge IGBT module designed for industrial power conversion applications. It features a 1200V collector-emitter voltage and a continuous collector current of 150A at 80°C.



Built with proven Non-Punch-Through (NPT) IGBT technology, this module offers a wide Safe Operating Area (SOA) and exceptional ruggedness. The integrated sixpack configuration, containing six IGBTs and six freewheeling diodes in a three-phase bridge topology, simplifies the design of motor inverters and power converters. It also includes an onboard NTC thermistor for real-time temperature monitoring and thermal management.



The BSM150GT120DN2 is housed in an industrial standard module package, making it suitable for both new designs and as a replacement for legacy systems. Its typical collector-emitter saturation voltage is 2.15V at 150A.



This IGBT module excels in applications such as Variable Frequency Drives (VFDs), Uninterruptible Power Supplies (UPS), welding, and induction heating, where reliability and design simplicity are critical.

BSM150GT120DN2 Quick Information

Product Type: IGBT Module
Canonical Name: Infineon BSM150GT120DN2 Half-Bridge IGBT Module
Subcategory: Half-Bridge

BSM150GT120DN2 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

BSM150GT120DN2 Estimated Pricing

Qty Low High
1+ $0.71 $0.71

Estimated market price range - modelled values for guidance only, not live distributor offers.

BSM150GT120DN2 Features

  • 1200V collector-emitter voltage rating.
  • 150A continuous collector current.
  • Integrated Sixpack configuration.
  • Proven NPT IGBT technology.
  • Onboard thermal sensing NTC thermistor.

BSM150GT120DN2 Applications

  • Ideal for Variable Frequency Drives.
  • Suitable for Uninterruptible Power Supplies.
  • Robust for welding applications.
  • Used in induction heating systems.

BSM150GT120DN2 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the maximum collector-emitter voltage for the BSM150GT120DN2?

The maximum collector-emitter voltage (VCES) is 1200V.

What is the continuous collector current rating?

The continuous collector current (IC) is 150A at a case temperature of 80°C.

What is the typical collector-emitter saturation voltage?

The typical collector-emitter saturation voltage (VCE(sat)) is 2.15V when the collector current (IC) is 150A.

What is the isolation voltage of the module?

The isolation voltage (Visol) is 2500V RMS for 1 minute.

What topology does the BSM150GT120DN2 use?

It uses a Sixpack (3-Phase Full Bridge) topology.

What integrated features are included?

It includes fast freewheeling diodes and an NTC thermistor.

What is the RoHS status of this component?

The RoHS status is RoHS3 Compliant.
