| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
230 pcs
|
230 pcs | On Request | 1 | On Request | On Request | 09PB | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Features | |
| Halogen Free | |
| Height Above Board | |
| Lead Spacing | |
| Mated Stacking Heights | |
| Mounting Type | |
| Number of Pins | |
| Number of Positions | |
| Number of Rows | |
| Pitch | |
| Plating | |
| SVHC Present | |
| Tape & Reel |

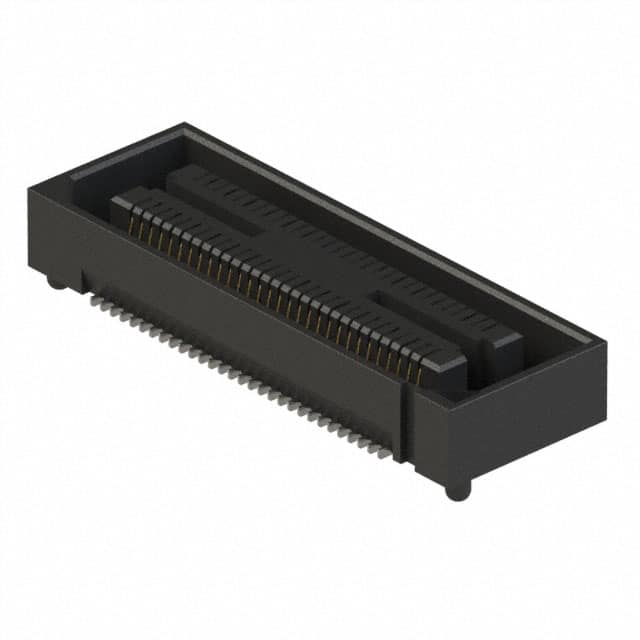

The Samtec BSH-030-01-H-D-A-TR is a 60-position mezzanine receptacle connector from the BSH series. It features a 0.5mm pitch and two rows of center strip contacts, making it suitable for high-density board-to-board interconnections. The connector is surface mount (SMT) and comes with gold contact finish of 30µin thickness for reliable conductivity. It includes a board guide for alignment during assembly. The mated stacking height is 5mm, with a stack height range of 5-25mm, allowing flexibility in system design. The connector is packaged in tape and reel with 500 parts per package. It is RoHS3 compliant and UL recognized (E111594). This connector is ideal for applications requiring compact, high-density mezzanine connections in industrial, telecommunications, and computing equipment.
| Qty | Low | High |
|---|---|---|
| 1+ | $6.54 | $6.54 |
| 10+ | $5.94 | $5.94 |
| 250+ | $5.55 | $5.55 |
| 500+ | $4.53 | $4.53 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
60 positions.
0.5mm (0.020").
Surface mount (SMT).
Gold with 30µin (0.76µm) thickness.
Mated stacking height is 5mm, with a range of 5-25mm.
Tape and reel with 500 parts per package.
Yes, RoHS3 compliant (unverified).
