| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
39 pcs
|
39 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Current Rating | |
| Features | |
| Halogen Free | |
| Height Above Board | |
| Insulator Material | |
| Lead Coplanarity | |
| Lead-Free Solderable | |
| Mated Stacking Height | |
| Mated Stacking Heights | |
| Mating Cycles | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Operating Temperature Range | |
| Packaging Type | |
| Pitch | |
| SVHC Present | |
| Standard Package Quantity | |
| Tape & Reel | |
| Voltage Rating |

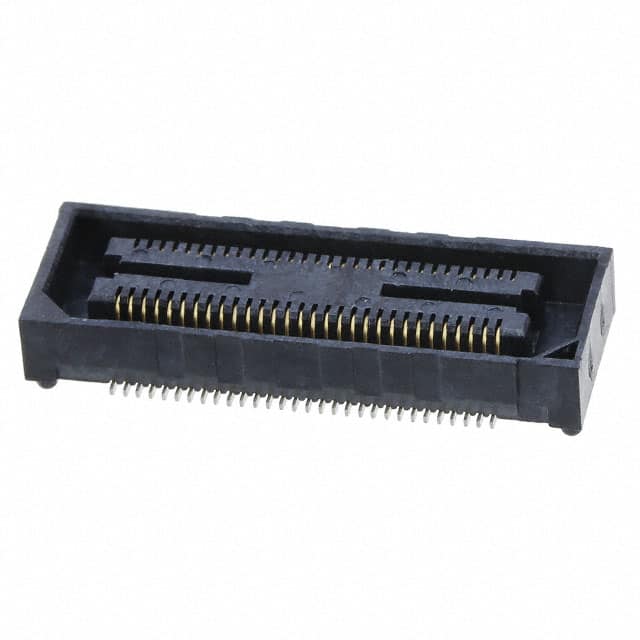

The Samtec BSH-030-01-F-D-A-TR is a 60-position socket strip connector from the BSH series, designed for board-to-board mezzanine applications. It features a 0.50mm pitch and two rows of center strip contacts, providing a compact interconnect solution. The connector is rated for 2A per pin (with 2 pins powered) and 175 VAC maximum, with an operating temperature range of -55°C to +125°C. It is surface mount and has a mated stack height of 5mm. The insulator is made of black LCP, and contacts are phosphor bronze with gold flash plating. The connector includes a board guide feature for alignment. Packaging is tape and reel with a standard quantity of 500. This part is lead-free solderable and has a maximum lead coplanarity of 0.10mm. It is designed for up to 100 mating cycles. The BSH series mates with the BTH series terminal strips.
0.50 mm (0.020").
60 positions total, arranged in 2 rows.
2 A per pin (2 pins powered).
175 VAC maximum.
Surface mount.
-55°C to +125°C.
5 mm (0.197").
