BAT54JFILM-HQ
STMicroelectronics
The STMicroelectronics BAT54JFILM-HQ is a Schottky diode array designed for surface mount applications. It offers a 40V reverse voltage and 200mA average rectified current per diode.
| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,340 pcs
|
2340 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Mounting Type |

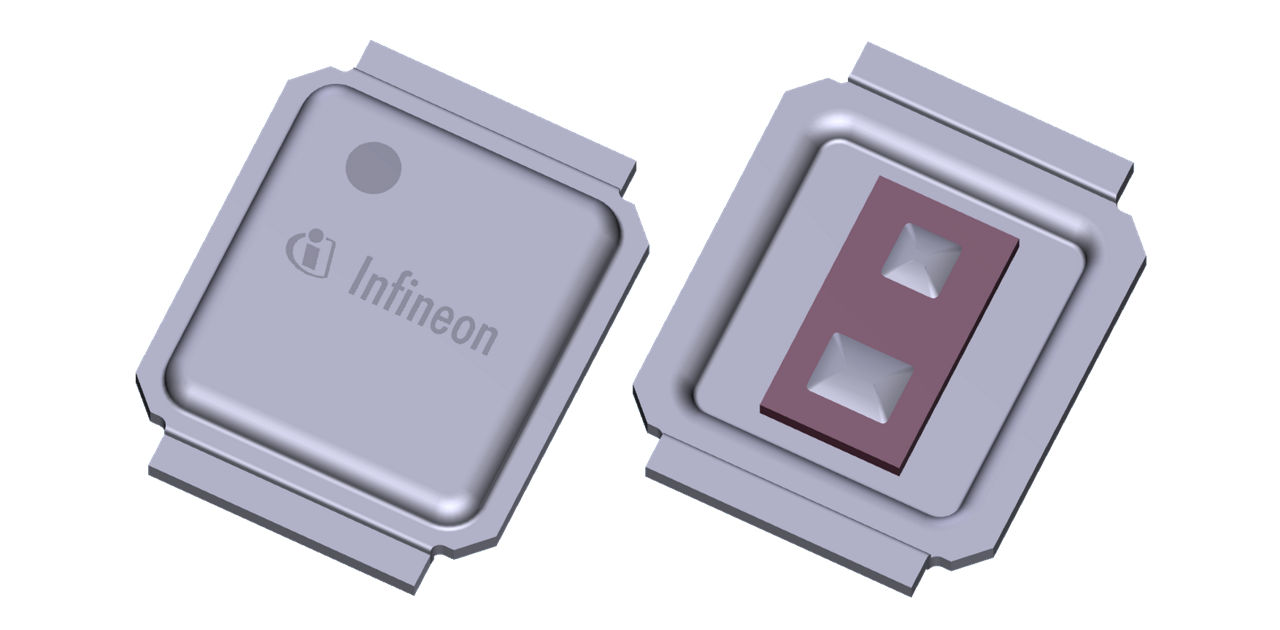

The Infineon BSF450NE7NH3 is an N-channel OptiMOS 3 Power MOSFET designed for high-performance applications. With a drain-source voltage rating of 75V and a maximum on-resistance of 45mΩ at 15A, this MOSFET is optimized for DC/DC converters.
Key features include an excellent gate charge x RDS(on) product (FOM), superior thermal resistance, and dual-sided cooling capabilities. The low parasitic inductance and low profile (<0.7mm) make it suitable for space-constrained designs. It is 100% avalanche tested and features Pb-free plating, complying with RoHS standards.
This MOSFET is compatible with the DirectFET® package ST footprint and outline, offering a surface mount solution. Its operating temperature range is from -40°C to 150°C, ensuring reliability in various environmental conditions.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.40 | $2.40 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
75V.
45mOhm maximum at VGS=10V, ID=15A.
15A at TC=25°C, 10A at TC=100°C, and 5A at TA=25°C.
-40°C to 150°C junction/storage.
MG-WDSON-2 surface mount package.
±20V.
18W at TC=25°C, 2.2W at TA=25°C.
