| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
90,000 pcs
|
90000 pcs | On Request | 1 | On Request | On Request | 08+ | On Request | On Request | |
|
30,000 pcs
|
30000 pcs | On Request | 1 | On Request | On Request | 09+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Drain to Source Voltage (Vdss) | |
| Drive Voltage (Max Rds On, Min Rds On) | |
| FET Type | |
| Gate Charge (Qg) (Max) @ Vgs | |
| Input Capacitance (Ciss) (Max) @ Vds | |
| Mounting Type | |
| Operating Temperature | |
| Power Dissipation (Max) | |
| Rds On (Max) @ Id, Vgs | |
| Supplier Device Package | |
| Tape & Reel | |
| Technology | |
| Vgs (Max) | |
| Vgs(th) (Max) @ Id |

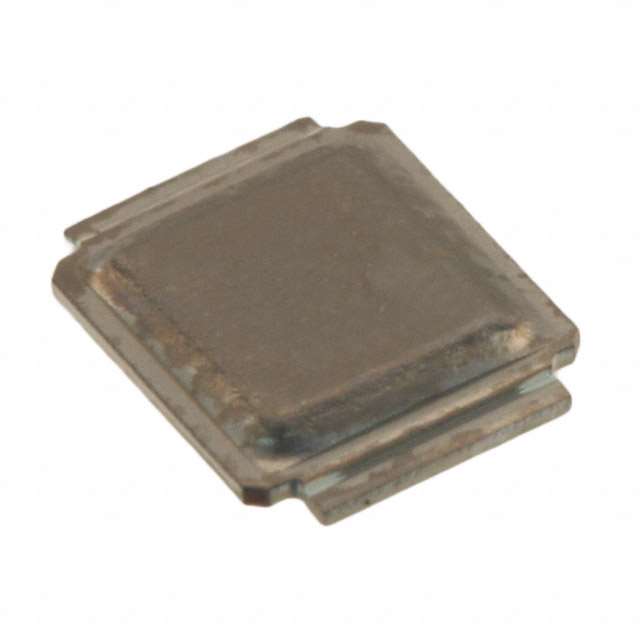

Infineon Technologies BSF083N03LQG is an N-channel MOSFET built with metal-oxide semiconductor technology. The device is rated for a maximum drain-to-source voltage of 30 V and can handle continuous drain currents of 13 A at an ambient temperature of 25°C and up to 53 A at case temperature. The maximum on-resistance is 8.3 mΩ at a 20 A drain current and 10 V gate drive, supporting efficient power conversion.
The MOSFET features a maximum gate charge of 18 nC at 10 V and an input capacitance of 1800 pF at 15 V, reducing switching losses in high-frequency circuits. The gate threshold voltage is 2.2 V maximum, and the gate-source voltage range is ±20 V. Maximum power dissipation is 2.2 W at ambient temperature and 36 W at case temperature.
The device operates over a junction temperature range of -40°C to +150°C. It is supplied in a compact surface-mount 3-WDSON package, also identified as MG-WDSON-2 or CanPAK M, suitable for automated assembly. This MOSFET is commonly used in power supply, DC-DC converter, load switching, and motor control applications.
| Qty | Low | High |
|---|---|---|
| 489+ | $0.61 | $0.61 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum drain-to-source voltage is 30 V.
The continuous drain current is 13 A at ambient temperature (Ta) and 53 A at case temperature (Tc).
The maximum on-resistance is 8.3 mOhm at a drain current of 20 A and a gate-source voltage of 10 V.
The operating junction temperature range is -40°C to 150°C.
The device is offered in a surface-mount 3-WDSON package, also known as MG-WDSON-2 or CanPAK M.
The maximum gate-source voltage is ±20 V.
The source database lists it as RoHS3 Compliant, but this status is unverified.
