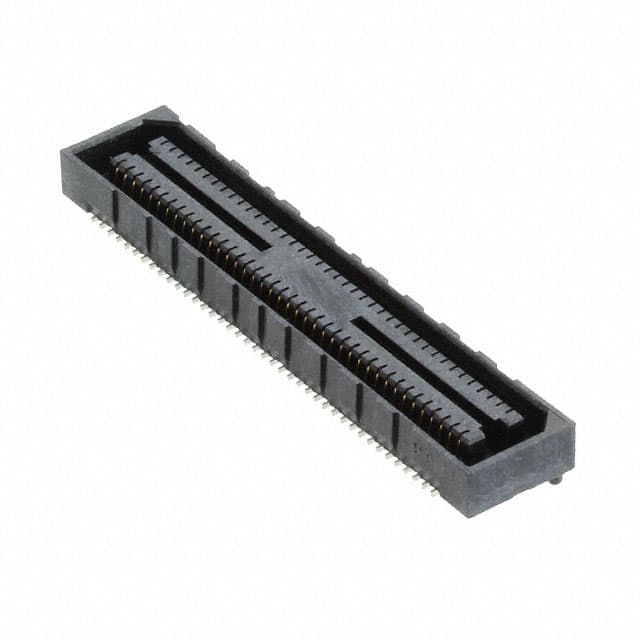

BSE-040-01-L-D-A Samtec BSE-040-01-L-D-A is a 0.80mm pitch, 80 position, 2 row surface mount socket strip with gold contacts. It is rated for 2A per pin and operates from -55°C to +125°C.
Mfr Part #:

BSE-040-01-L-D-A

Available from 1 distributors
Mfr Name: Samtec Inc.
Samtec Inc.
Samtec BSE-040-01-L-D-A is a 0.80mm pitch, 80 position, 2 row surface mount socket strip with gold contacts. It is rated for 2A per pin and operates from -55°C to +125°C.
✓ Total Stock: 8 pcs

BSE-040-01-L-D-A Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
HMB Electronics LLC ✓
Non-Authorised Inventory information
8 pcs
On Request
8 pcs On Request 1 On Request On Request 2017-01-25 On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

BSE-040-01-L-D-A Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
California Proposition 65
Connector Type
Contact Finish
Contact Finish Thickness
Contact Material
Current Rating
Extended Life Product
Features
Halogen Free
Height Above Board
Insulator Material
Lead Spacing
Lead Style
Lead-Free Solderable
Mated Stacking Heights
Mating Cycles
Mounting Type
Number of Positions
Number of Rows
Operating Temperature Range
Packaging Type
Pitch
Plating Option
SMT Lead Coplanarity
Standard Package Quantity
Tape & Reel
Termination Style
Voltage Rating
View Similar Products (0)

BSE-040-01-L-D-A Description

Short technical summary and product information.

The Samtec BSE-040-01-L-D-A is a 0.80mm pitch Basic Blade & Beam socket strip designed for board-to-board mezzanine applications. It features 80 positions arranged in 2 rows with a surface mount termination style. The connector uses phosphor bronze contacts with 10 µ" gold plating on the contact area and matte tin on the solder tails, ensuring reliable signal integrity and corrosion resistance.



This socket strip is rated for 2A per pin (with 2 pins powered) and a voltage rating of 225 VAC at 5mm stack height. It supports mated stacking heights of 5mm and 8mm, and is designed for up to 100 mating cycles. The insulator is molded from liquid crystal polymer (LCP), providing high temperature stability for lead-free soldering processes.



The BSE-040-01-L-D-A includes a board guide feature for alignment during assembly. It is supplied in tray packaging with a standard quantity of 64 pieces. This connector is RoHS compliant, REACH compliant (no SVHCs), halogen free, and MSL Level 1. It is an Extended Life Product (E.L.P.) rated for high mating cycle applications.

BSE-040-01-L-D-A Quick Information

Product Type: Socket Strip
Series: BSE
Canonical Name: Samtec BSE Series 0.80mm Pitch 80 Position 2 Row Surface Mount Socket Strip
Subcategory: Mezzanine Connector

BSE-040-01-L-D-A Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): Level 1
REACH Status: No SVHCs
Lead Free: Yes

BSE-040-01-L-D-A Features

  • 80 position 0.80mm pitch socket strip.
  • Surface mount with gold plated contacts.
  • Rated for 2A per pin at 225 VAC.
  • Extended Life Product for 100 mating cycles.
  • RoHS, REACH, and halogen free compliant.

BSE-040-01-L-D-A Applications

  • Board-to-board mezzanine stacking applications.
  • High-density signal interconnects in compact designs.
  • Industrial and commercial electronic assemblies.
  • Applications requiring lead-free soldering compatibility.

BSE-040-01-L-D-A FAQs

7 frequently asked questions generated from this part’s specifications.
What is the pitch of the BSE-040-01-L-D-A?

The pitch is 0.80mm (0.031").

What is the current rating of this connector?

2A per pin (with 2 pins powered).

What is the voltage rating?

225 VAC at 5mm stack height.

What mounting type does this connector use?

Surface mount (SMD).

What is the operating temperature range?

-55°C to +125°C.

How many mating cycles is this connector rated for?

Minimum 100 cycles.

What is the contact finish?

10 µ" (0.25 µm) Gold on contact, Matte Tin on tail.
