| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
21,020 pcs
|
21020 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Current | |
| Drain to Source Voltage (Vdss) | |
| Drive Voltage (Max Rds On, Min Rds On) | |
| FET Type | |
| Gate Charge (Qg) (Max) @ Vgs | |
| Halogen Free | |
| Industrial Grade | |
| Input Capacitance (Ciss) (Max) @ Vds | |
| Mounting Type | |
| Operating Temperature | |
| Power Dissipation (Max) | |
| Rds On (Max) @ Id, Vgs | |
| SVHC Present | |
| Storage Temperature | |
| Supplier Device Package | |
| Technology | |
| Vgs (Max) | |
| Vgs(th) (Max) @ Id |

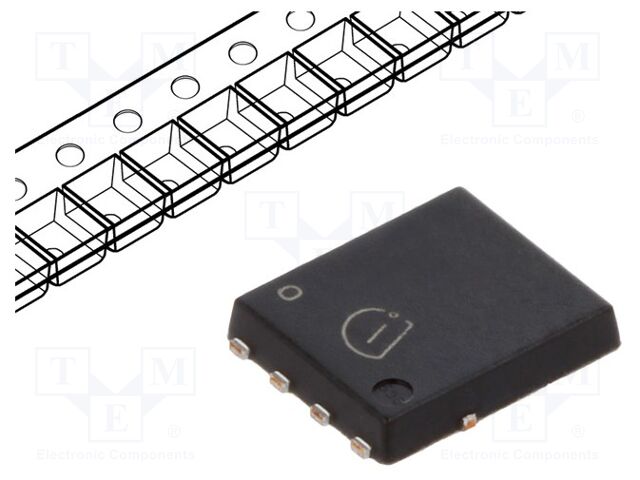

The BSC0906NSATMA1 is an N-channel enhancement mode MOSFET from Infineon's OptiMOS family, designed for high-performance power conversion. It features a maximum drain-source voltage of 30V and a continuous drain current of 63A at case temperature (Tc=25°C) or 18A at ambient temperature (Ta=25°C). The device offers a low typical on-resistance of 4.5mOhm at Vgs=10V, enabling high efficiency in switching applications.
Key electrical characteristics include a gate charge of 13nC (max at Vgs=10V) and input capacitance of 870pF (max at Vds=15V), which contribute to fast switching performance. The MOSFET is avalanche rated with a single pulse avalanche current of 35A and energy of 14mJ, ensuring robustness in inductive load switching. The operating junction temperature range is -55°C to 150°C.
The device is housed in a PG-TDSON-8-6 (8-PowerTDFN) surface-mount package, offering excellent thermal performance with a maximum power dissipation of 30W at case temperature. It is optimized for high-performance buck converters and clean switching applications. The BSC0906NSATMA1 is RoHS compliant and halogen-free according to IEC61249-2-21.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.11 | $1.11 |
| 10+ | $0.69 | $0.69 |
| 50+ | $0.51 | $0.51 |
| 100+ | $0.45 | $0.45 |
| 500+ | $0.35 | $0.35 |
| 5,000+ | $0.26 | $0.26 |
| 15,000+ | $0.23 | $0.23 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
30V maximum.
PG-TDSON-8-6 (8-PowerTDFN) surface-mount package.
-55°C to 150°C.
Yes, RoHS compliant and halogen-free per datasheet.
4.5mOhm maximum at Vgs=10V, Id=30A.
13nC maximum at Vgs=10V.
63A at Tc=25°C, 18A at Ta=25°C.
