| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
51,020 pcs
|
51020 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Current | |
| Drain to Source Voltage (Vdss) | |
| Drive Voltage (Max Rds On, Min Rds On) | |
| FET Type | |
| Gate Charge (Qg) (Max) @ Vgs | |
| Halogen Free | |
| Industrial Grade | |
| Input Capacitance (Ciss) (Max) @ Vds | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Operating Temperature | |
| Power Dissipation (Max) | |
| Rds On (Max) @ Id, Vgs | |
| SVHC Present | |
| Supplier Device Package | |
| Tape & Reel | |
| Technology | |
| Vgs (Max) | |
| Vgs(th) (Max) @ Id |
This N-channel MOSFET from Infineon's OptiMOS series is designed for high-performance power conversion applications. It features a maximum drain-source voltage of 30V and a continuous drain current of 149A at case temperature 25°C. The device has a very low on-resistance of 1.9mOhm at 10V gate drive, minimizing conduction losses. It is avalanche tested and offers superior thermal resistance.

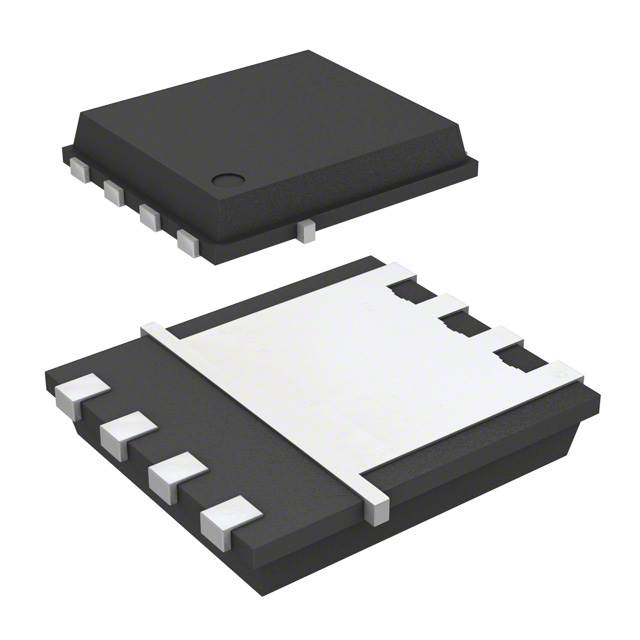

The MOSFET is housed in a PG-TDSON-8 (SuperSO8) surface mount package, ideal for compact designs. It is RoHS compliant and halogen-free per IEC61249-2-21. Key electrical characteristics include a typical gate charge of 44nC and input capacitance of 2800pF. The device is suitable for synchronous buck converters and other high-current switching applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.89 | $1.89 |
| 10+ | $1.20 | $1.20 |
| 100+ | $0.76 | $0.76 |
| 500+ | $0.61 | $0.61 |
| 1,000+ | $0.54 | $0.54 |
| 2,500+ | $0.52 | $0.52 |
| 5,000+ | $0.50 | $0.50 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum drain-source voltage is 30V.
The package is PG-TDSON-8 (SuperSO8, 8-PowerTDFN) with surface mount mounting.
The operating junction temperature range is -55°C to 150°C.
Yes, it is RoHS3 compliant and halogen-free according to IEC61249-2-21.
The maximum on-resistance is 1.9mOhm at 30A and 10V gate drive.
The continuous drain current is 149A at Tc=25°C with 10V gate drive, and 28A at TA=25°C.
The typical gate charge is 44nC at 10V gate-source voltage.
