| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5,000 pcs
|
5000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1,837 pcs
|
1837 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Drain to Source Voltage (Vdss) | |
| Drive Voltage (Max Rds On, Min Rds On) | |
| FET Type | |
| Gate Charge (Qg) (Max) @ Vgs | |
| Halogen Free | |
| Input Capacitance (Ciss) (Max) @ Vds | |
| Mounting Type | |
| Operating Temperature | |
| Power Dissipation (Max) | |
| Rds On (Max) @ Id, Vgs | |
| Storage Temperature | |
| Supplier Device Package | |
| Tape & Reel | |
| Technology | |
| Vgs (Max) | |
| Vgs(th) (Max) @ Id |
The BSC065N06LS5ATMA1 is an N-channel logic level MOSFET from Infineon's OptiMOS family, designed for high-performance switch mode power supplies (SMPS) and synchronous rectification. It features a maximum drain-source voltage of 60V and continuous drain current of 64A at Tc=25°C. The on-resistance is typically 6.5mOhm at Vgs=10V and Id=32A, enabling low conduction losses.
Gate charge is 10nC typical (0V to 4.5V) and input capacitance is 1800pF at Vds=30V, making it suitable for high-frequency switching. The device is 100% avalanche tested with a maximum avalanche energy of 21mJ. It operates over a junction temperature range of -55°C to 150°C and can dissipate up to 46W at Tc=25°C.

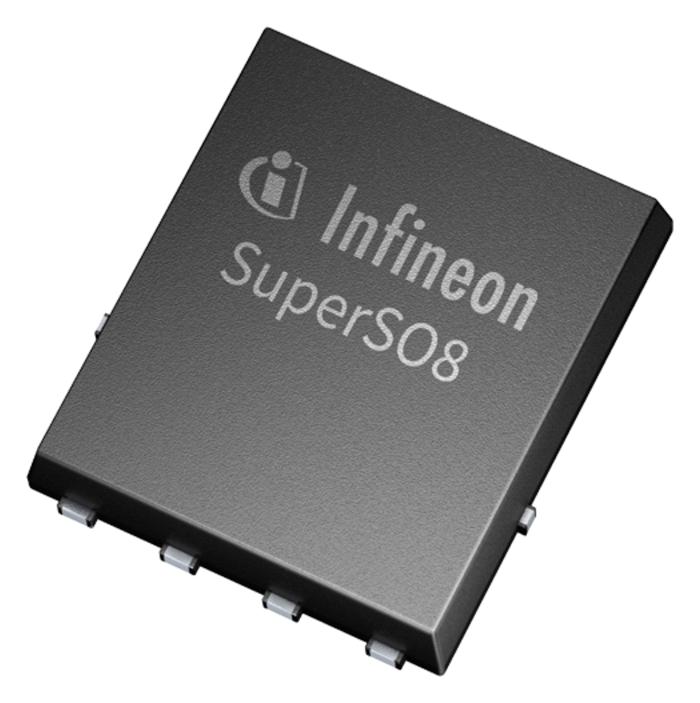

The MOSFET is housed in a PG-TDSON-8 (8-PowerTDFN) surface mount package, offering excellent thermal performance. It is halogen-free per IEC61249-2-21 and RoHS compliant according to the datasheet. Typical applications include DC-DC converters, telecom power systems, and server power supplies.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.22 | $1.22 |
| 10+ | $0.77 | $0.77 |
| 100+ | $0.50 | $0.50 |
| 500+ | $0.50 | $0.50 |
| 5,000+ | $0.50 | $0.50 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
60V maximum.
PG-TDSON-8 (8-PowerTDFN) surface mount package.
-55°C to 150°C.
Yes, according to the datasheet it is RoHS compliant and halogen-free per IEC61249-2-21.
64A at Tc=25°C, 41A at Tc=100°C, and 15A at TA=25°C.
Maximum 6.5mOhm at Id=32A and Vgs=10V.
Typical 10nC from 0V to 4.5V; maximum 13nC at Vgs=4.5V per existing data.
