| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
56,020 pcs
|
56020 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Drain to Source Voltage (Vdss) | |
| Drive Voltage (Max Rds On, Min Rds On) | |
| FET Type | |
| Gate Charge (Qg) (Max) @ Vgs | |
| Halogen Free | |
| Input Capacitance (Ciss) (Max) @ Vds | |
| Mounting Type | |
| Operating Temperature | |
| Power Dissipation (Max) | |
| Rds On (Max) @ Id, Vgs | |
| Storage Temperature | |
| Supplier Device Package | |
| Tape & Reel | |
| Technology | |
| Vgs (Max) | |
| Vgs(th) (Max) @ Id |

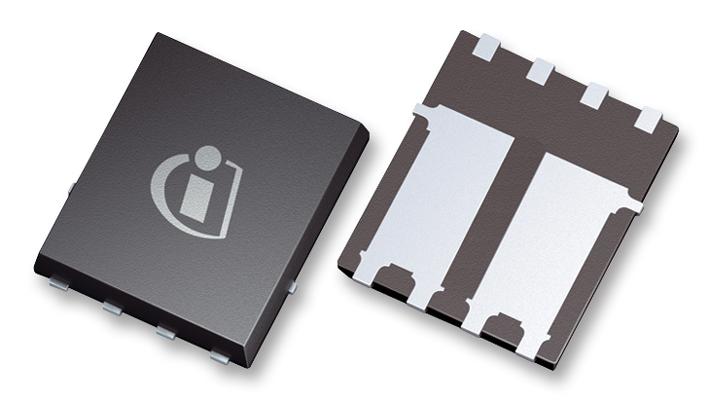

The Infineon BSC050NE2LSATMA1 is an N-Channel Power MOSFET from the OptiMOS family, designed for high-performance switching applications. It features a maximum drain-source voltage of 25V and a continuous drain current of 58A at Tc=25°C. The device offers an ultra-low on-resistance of 5mΩ (max) at VGS=10V, enabling high efficiency in power conversion circuits. Gate charge is 10.4nC (max) at VGS=10V, and input capacitance is 760pF (max) at VDS=12V, making it suitable for high-frequency switching. The MOSFET is 100% avalanche tested with an avalanche energy rating of 12mJ. It is housed in a SuperSO8 (PG-TDSON-8) surface-mount package, which provides superior thermal performance with a maximum power dissipation of 28W at Tc=25°C. The operating junction temperature range is -55°C to 150°C. The device is RoHS3 compliant and halogen-free according to IEC61249-2-21, with Pb-free lead plating. Typical applications include high-performance buck converters, DC-DC converters, and power management in computing and telecom systems.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.04 | $1.04 |
| 10+ | $0.65 | $0.65 |
| 100+ | $0.42 | $0.42 |
| 500+ | $0.33 | $0.33 |
| 1,000+ | $0.27 | $0.27 |
| 2,500+ | $0.27 | $0.27 |
| 5,000+ | $0.24 | $0.24 |
| 10,000+ | $0.22 | $0.22 |
| 25,000+ | $0.22 | $0.22 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
25V maximum.
8-PowerTDFN (SuperSO8) surface mount package.
-55°C to 150°C junction temperature.
Yes, RoHS3 compliant and halogen-free according to IEC61249-2-21.
5mΩ maximum at ID=30A, VGS=10V.
10.4nC maximum at VGS=10V.
58A at Tc=25°C with VGS=10V.
