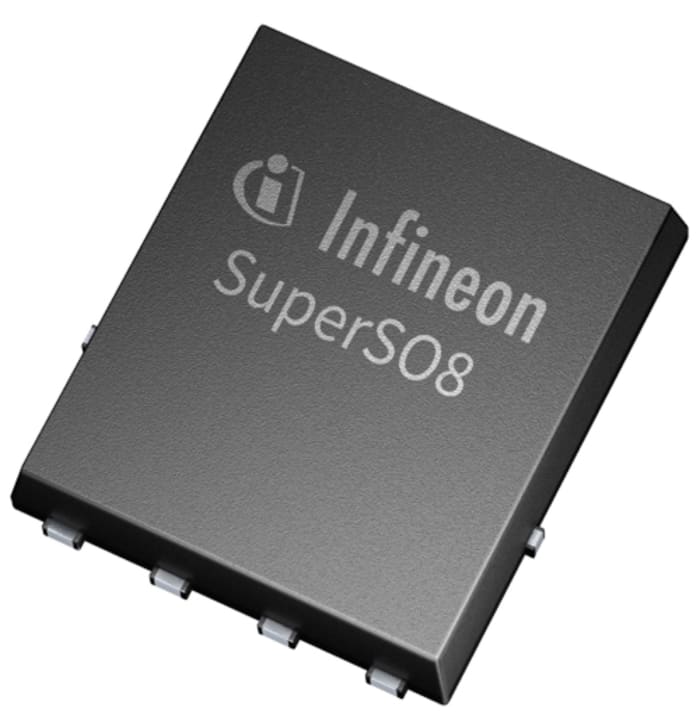

The Infineon BSC036NE7NS3GATMA1 is an N-Channel power MOSFET built on OptiMOS 3 technology, designed for high-efficiency power conversion. It is rated for a maximum drain-source voltage of 75V and can handle a continuous drain current of 159A at 25°C case temperature, with a pulsed drain current capability of 636A. The device features a low maximum on-resistance of 3.6mΩ at 50A and 10V gate drive, contributing to reduced conduction losses.
This MOSFET is optimized for synchronous rectification and high-frequency switching applications, making it suitable for DC/DC converters and power supplies. It offers a maximum gate charge of 63.4nC at 10V and an input capacitance of 4400pF at 37.5V drain-source voltage, enabling efficient switching performance. The device is 100% avalanche tested with a single-pulse avalanche energy rating of 260mJ.
The BSC036NE7NS3GATMA1 comes in an 8-PowerTDFN surface-mount package (PG-TDSON-8-7) and operates over a junction temperature range of -55°C to 150°C. It is RoHS compliant, halogen-free per IEC61249-2-21, and features Pb-free plating. The device is qualified according to JEDEC standards for target applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.69 | $2.69 |
| 10+ | $1.73 | $1.73 |
| 100+ | $1.19 | $1.19 |
| 500+ | $0.95 | $0.95 |
| 1,000+ | $0.88 | $0.88 |
| 5,000+ | $0.88 | $0.88 |
| 10,000+ | $0.82 | $0.82 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum drain-source voltage (Vdss) is 75V.
The continuous drain current is 159A at Tc=25°C with VGS=10V.
The maximum on-resistance is 3.6mΩ at 50A drain current and 10V gate-source voltage.
It comes in an 8-PowerTDFN surface-mount package with supplier device package PG-TDSON-8-7.
The operating junction temperature range is -55°C to 150°C.
Yes, the device is RoHS compliant with Pb-free plating.
