| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
56,020 pcs
|
56020 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
2,742 pcs
|
2742 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Drain to Source Voltage (Vdss) | |
| Drive Voltage (Max Rds On, Min Rds On) | |
| FET Type | |
| Gate Charge (Qg) (Max) @ Vgs | |
| Halogen Free | |
| Input Capacitance (Ciss) (Max) @ Vds | |
| Mounting Type | |
| Operating Temperature | |
| Power Dissipation (Max) | |
| Rds On (Max) @ Id, Vgs | |
| Supplier Device Package | |
| Tape & Reel | |
| Technology | |
| Vgs (Max) | |
| Vgs(th) (Max) @ Id |
The Infineon BSC030N08NS5ATMA1 is an N-Channel enhancement mode power MOSFET built on the OptiMOS 5 technology platform. It is designed for high-performance switched-mode power supplies (SMPS), particularly synchronous rectification applications.
Key electrical specifications include a maximum drain-source voltage of 80V, a continuous drain current of 161A at 25°C case temperature, and a maximum drain-source on-resistance of just 3.0 mΩ at VGS=10V. The device is 100% avalanche tested with a single-pulse avalanche energy rating of 250 mJ.

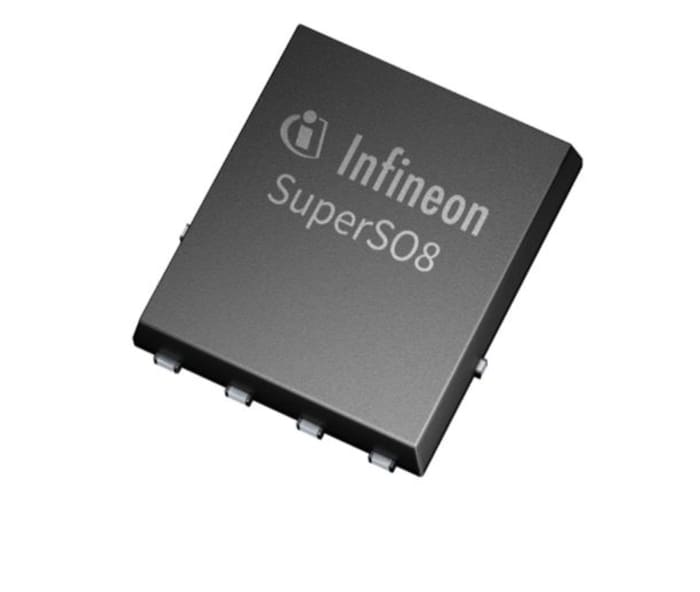

The MOSFET is housed in a PG-TDSON-8-7 (8-PowerTDFN) surface mount package, offering superior thermal resistance. It is qualified according to JEDEC standards and is RoHS compliant and halogen-free.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.84 | $2.84 |
| 10+ | $1.83 | $1.83 |
| 100+ | $1.26 | $1.26 |
| 500+ | $1.03 | $1.03 |
| 1,000+ | $1.01 | $1.01 |
| 5,000+ | $1.01 | $1.01 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum drain-source voltage (Vds) is 80 V.
The maximum continuous drain current (Id) at TC=25°C is 161 A.
The maximum drain-source on-resistance (Rds(on)) is 3.0 mΩ at VGS=10V and Id=50A.
The operating junction temperature range is -55°C to 150°C.
It comes in an 8-PowerTDFN surface mount package, also known as PG-TDSON-8-7.
Yes, it is listed as RoHS3 compliant and halogen-free according to IEC61249-2-21.
