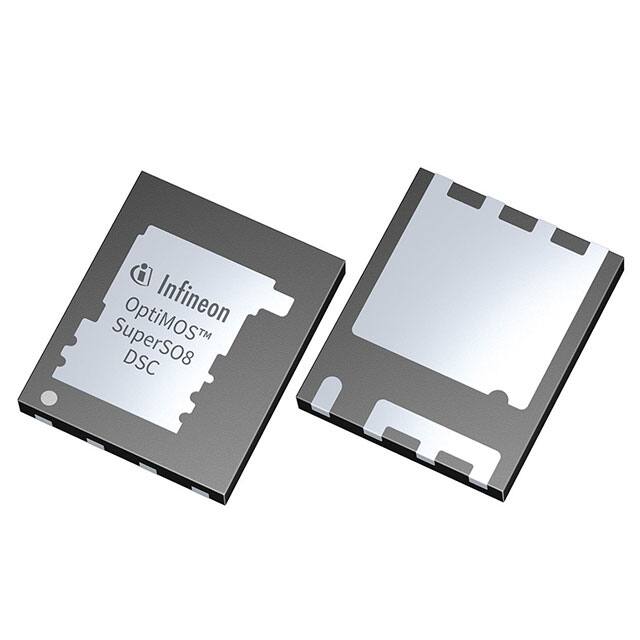

BSC023N08NS5SCATMA1 Infineon BSC023N08NS5SCATMA1 is an N-Channel OptiMOS 5 power MOSFET rated for 80V drain-source voltage and 202A continuous drain current. It features a low 2.3 mΩ maximum on-resistance in a surface-mount PG-WSON-8 package.
Mfr Part #:

BSC023N08NS5SCATMA1

Available from 2 distributors
Mfr Name: Infineon Technologies
Infineon Technologies
Infineon BSC023N08NS5SCATMA1 is an N-Channel OptiMOS 5 power MOSFET rated for 80V drain-source voltage and 202A continuous drain current. It features a low 2.3 mΩ maximum on-resistance in a surface-mount PG-WSON-8 package.
✓ Total Stock: 9,620 pcs
$ Price Range: $2.08

BSC023N08NS5SCATMA1 Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Optech Co.,Limited ✓
Non-Authorised Inventory information
5,020 pcs
On Request
5020 pcs On Request 1 On Request On Request On Request On Request On Request
PROSOFT ELECTRONICS ✓
Non-Authorised Inventory information
4,600 pcs
On Request
4600 pcs On Request 1 On Request On Request 23+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

BSC023N08NS5SCATMA1 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Drain to Source Voltage (Vdss)
Drive Voltage (Max Rds On, Min Rds On)
FET Type
Gate Charge (Qg) (Max) @ Vgs
Halogen Free
Industrial Grade
Input Capacitance (Ciss) (Max) @ Vds
Mounting Type
Operating Temperature
Power Dissipation (Max)
Rds On (Max) @ Id, Vgs
SVHC Present
Supplier Device Package
Tape & Reel
Technology
Vgs (Max)
Vgs(th) (Max) @ Id
View Similar Products (0)

BSC023N08NS5SCATMA1 Description

Short technical summary and product information.

The Infineon BSC023N08NS5SCATMA1 is an N-Channel enhancement mode power MOSFET built on the OptiMOS 5 technology platform. It is designed for high-efficiency power conversion applications, particularly synchronous rectification in server and desktop power supplies.



Key electrical specifications include a maximum drain-source voltage of 80V, a continuous drain current of 202A at 25°C case temperature, and a maximum drain-source on-resistance of just 2.3 mΩ at 10V gate drive. The device is rated for a maximum junction temperature of 175°C and offers a typical gate charge of 78 nC for fast switching.



The MOSFET is housed in a dual-side cooled PG-WSON-8 surface-mount package, which provides low junction-to-top thermal resistance. It is 100% avalanche tested and fully qualified according to JEDEC for industrial applications.

BSC023N08NS5SCATMA1 Quick Information

Product Type: MOSFET
Series: OptiMOS 5
Canonical Name: Infineon Technologies BSC023N08NS5SCATMA1 N-Channel OptiMOS 5 Power MOSFET
Subcategory: Single N-Channel MOSFET

BSC023N08NS5SCATMA1 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

BSC023N08NS5SCATMA1 Estimated Pricing

Qty Low High
4,000+ $2.08 $2.08

Estimated market price range - modelled values for guidance only, not live distributor offers.

BSC023N08NS5SCATMA1 Features

  • N-Channel OptiMOS 5 power MOSFET.
  • 80V drain-source voltage rating.
  • 202A continuous drain current at 25°C.
  • 2.3 mΩ maximum on-resistance at 10V.
  • Surface-mount PG-WSON-8 package.

BSC023N08NS5SCATMA1 Applications

  • Synchronous rectification in server power supplies.
  • High-efficiency DC-DC converter designs.
  • Industrial power management applications.

BSC023N08NS5SCATMA1 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the maximum drain-source voltage of the BSC023N08NS5SCATMA1?

The maximum drain-source voltage (VDS) is 80 V.

What is the maximum continuous drain current?

The maximum continuous drain current is 202 A at TC=25°C with VGS=10V.

What is the on-resistance of this MOSFET?

The maximum drain-source on-resistance is 2.3 mΩ at VGS=10V and ID=50A.

What package is the BSC023N08NS5SCATMA1 available in?

It is available in an 8-PowerWDFN surface-mount package, also known as PG-WSON-8-2.

What is the operating temperature range?

The operating junction temperature range is -55°C to 175°C.

Is the BSC023N08NS5SCATMA1 RoHS compliant?

Yes, it is RoHS3 compliant with Pb-free lead plating as stated in the datasheet.

What is the typical gate charge of this device?

The typical gate charge from 0V to 10V is 78 nC.
