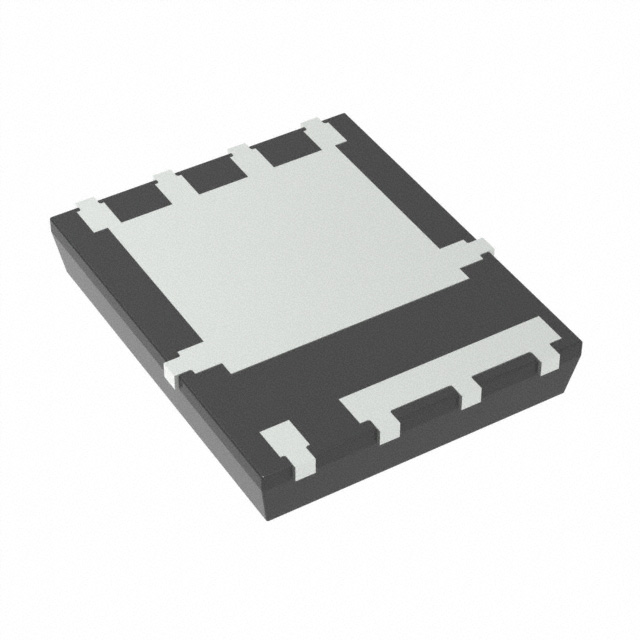

The BSC014N06NSATMA1 is an N-Channel power MOSFET from Infineon Technologies, part of the OptiMOS family. It is designed for high-performance switch-mode power supplies, including synchronous rectification. The device is rated for a maximum drain-source voltage of 60V and supports a continuous drain current of 257A at Tc=25°C, with a pulsed current rating of 1028A.
Key electrical characteristics include a maximum RDS(on) of 1.45mΩ at Vgs=10V and Id=50A, a typical total gate charge of 100nC, and a maximum input capacitance of 6500pF at Vds=30V. The device is 100% avalanche tested and rated for 175°C junction temperature, enabling robust operation in demanding industrial environments.
The BSC014N06NSATMA1 comes in a PG-TDSON-8 (SuperSO8) surface-mount package, also known as 8-PowerTDFN, with a supplier device package of PG-TDSON-8-17. It is RoHS compliant, halogen-free per IEC61249-2-21, and has Pb-free lead plating. The source pins (1-3) are enlarged to improve solder joint reliability.
This MOSFET is suitable for applications such as high-power density DC-DC converters, synchronous rectification stages, and motor control circuits. Its low on-resistance and fast switching characteristics help reduce power losses and improve efficiency.
| Qty | Low | High |
|---|---|---|
| 1+ | $3.28 | $3.28 |
| 10+ | $2.13 | $2.13 |
| 100+ | $1.47 | $1.47 |
| 500+ | $1.32 | $1.32 |
| 5,000+ | $1.20 | $1.20 |
| 10,000+ | $1.19 | $1.19 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum drain-source voltage is 60V.
It is available in a PG-TDSON-8 (SuperSO8) surface-mount package, also known as 8-PowerTDFN, with supplier device package PG-TDSON-8-17.
The datasheet specifies operation from -55°C to 175°C junction temperature.
Yes, it is RoHS3 compliant and also halogen-free according to IEC61249-2-21.
The continuous drain current is 257A at Tc=25°C and 182A at Tc=100°C.
The maximum on-resistance is 1.45mΩ at Vgs=10V and Id=50A.
The typical total gate charge is 100nC, and the maximum gate charge at Vgs=10V is 89nC.
