BSC010N04LSI The Infineon Technologies BSC010N04LSI is an N-channel MOSFET with a 40V drain-source voltage. It offers a low on-resistance of 1.05 mΩ maximum.
Mfr Part #:

BSC010N04LSI

Available from 2 distributors
Mfr Name: Infineon Technologies
Infineon Technologies
The Infineon Technologies BSC010N04LSI is an N-channel MOSFET with a 40V drain-source voltage. It offers a low on-resistance of 1.05 mΩ maximum.
✓ Total Stock: 42,750 pcs
$ Price Range: $2.40

BSC010N04LSI Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Optech Co.,Limited ✓
Non-Authorised Inventory information
41,194 pcs
On Request
41194 pcs On Request 1 On Request On Request 19+ On Request On Request
Xingangxin ✓
Non-Authorised Inventory information
1,556 pcs
On Request
1556 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

BSC010N04LSI Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Halogen Free
Lead Spacing
Lead Style
Mounting Type
SVHC Present
Storage Temperature
Tape & Reel
Voltage
View Similar Products (0)

BSC010N04LSI Description

Short technical summary and product information.

The Infineon Technologies BSC010N04LSI is an N-channel OptiMOSTM Power-MOSFET designed for synchronous rectification applications. It features a drain-source voltage rating of 40V and a very low on-resistance, with a maximum of 1.05 mΩ at VGS=10V and TC=25°C.



This MOSFET boasts a high continuous drain current capability, rated up to 275A at VGS=10V and TC=25°C. It is 100% avalanche tested and includes an integrated monolithic Schottky-like diode. The device is qualified according to JEDEC standards for target applications.

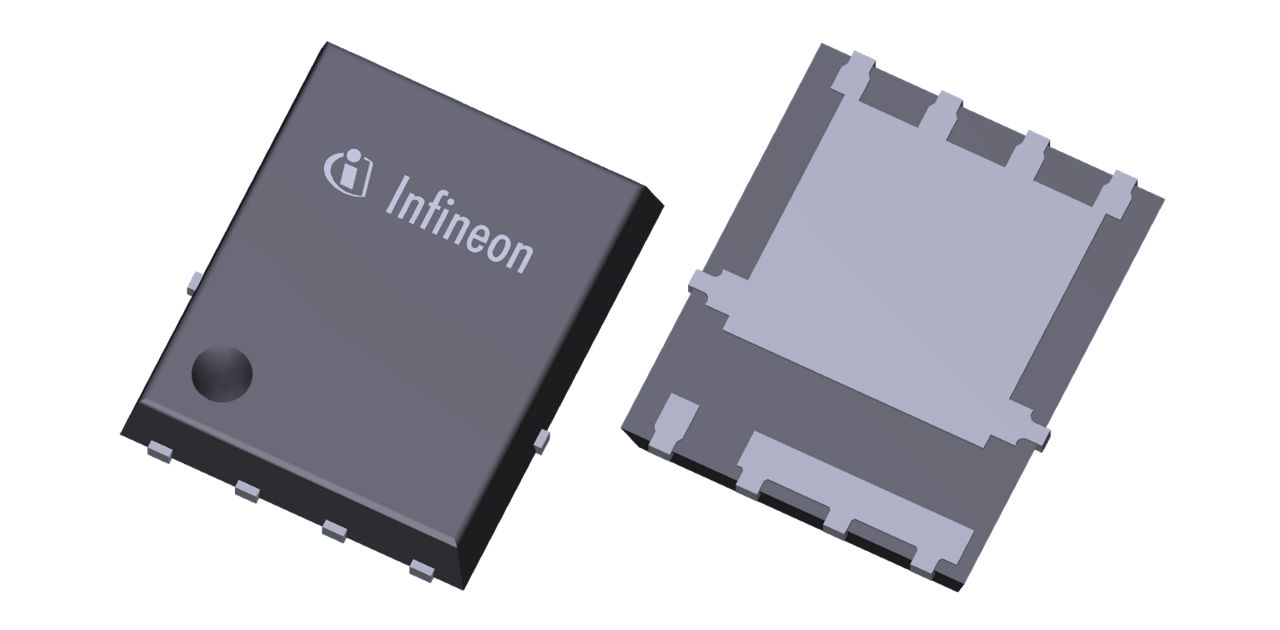

The BSC010N04LSI is supplied in a TDSON-8 FL package, which offers higher solder joint reliability due to its enlarged source interconnection. It is Pb-free and RoHS compliant, as well as Halogen-free according to IEC61249-2-21.



Key electrical parameters include a typical output charge (QOSS) of 83 nC and a typical gate charge (QG) from 0V to 10V of 87 nC. This MOSFET is optimized for efficient power conversion designs.

BSC010N04LSI Quick Information

Product Type: N-channel Power MOSFET
Series: OptiMOS 5
Canonical Name: BSC010N04LSI N-channel Power MOSFET
Subcategory: N-channel

BSC010N04LSI Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

BSC010N04LSI Estimated Pricing

Qty Low High
1+ $2.40 $2.40

Estimated market price range - modelled values for guidance only, not live distributor offers.

BSC010N04LSI Features

  • 40V drain-source voltage rating.
  • Low on-resistance of 1.05 mΩ maximum.
  • High continuous drain current capability.
  • Integrated monolithic Schottky-like diode.
  • TDSON-8 FL package for improved reliability.

BSC010N04LSI Applications

  • Optimized for synchronous rectification in converters.
  • Ideal for high-current DC-DC power stages.
  • Used in battery protection and management systems.
  • Suitable for power OR-ing and load switching.

BSC010N04LSI FAQs

7 frequently asked questions generated from this part’s specifications.
What is the maximum drain-source voltage for the BSC010N04LSI?

The maximum drain-source voltage (VDS) for the BSC010N04LSI is 40V.

What is the maximum on-resistance of the BSC010N04LSI MOSFET?

The maximum on-resistance (RDS(on)) for the BSC010N04LSI is 1.05 mΩ when measured at VGS=10V and TC=25°C.

What is the continuous drain current rating for the BSC010N04LSI?

The continuous drain current (ID) rating for the BSC010N04LSI is up to 275A at VGS=10V and TC=25°C, and up to 174A at VGS=10V and TC=100°C.

What package type is the BSC010N04LSI MOSFET supplied in?

The BSC010N04LSI MOSFET is supplied in a TDSON-8 FL package.

Is the BSC010N04LSI RoHS compliant?

Yes, the BSC010N04LSI is RoHS3 Compliant.

What is the Moisture Sensitivity Level (MSL) for the BSC010N04LSI?

The Moisture Sensitivity Level (MSL) for the BSC010N04LSI is 1 Unlimited.

Does the BSC010N04LSI meet REACH regulations?

Yes, the BSC010N04LSI is REACH Unaffected.
