| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
46,020 pcs
|
46020 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Drain to Source Voltage (Vdss) | |
| Drive Voltage (Max Rds On, Min Rds On) | |
| FET Type | |
| Gate Charge (Qg) (Max) @ Vgs | |
| Halogen Free | |
| Industrial Grade | |
| Input Capacitance (Ciss) (Max) @ Vds | |
| Mounting Type | |
| Operating Temperature | |
| Operating Temperature Range | |
| Power Dissipation (Max) | |
| Rds On (Max) @ Id, Vgs | |
| Storage Temperature | |
| Supplier Device Package | |
| Tape & Reel | |
| Technology | |
| Vgs (Max) | |
| Vgs(th) (Max) @ Id |
The BSC010N04LSATMA1 is an N-Channel power MOSFET from Infineon Technologies, part of the OptiMOS family. It is designed for high-efficiency power conversion and is rated for a maximum drain-source voltage of 40V. The device features a very low maximum on-resistance of 1mOhm at VGS=10V, enabling high current handling with minimal conduction losses.
This MOSFET supports a continuous drain current of up to 292A at case temperature 25°C (VGS=10V) and is rated for a maximum power dissipation of 139W at case temperature 25°C. The device is 175°C rated and is fully qualified according to JEDEC for industrial applications. It is optimized for synchronous rectification and offers superior thermal resistance.

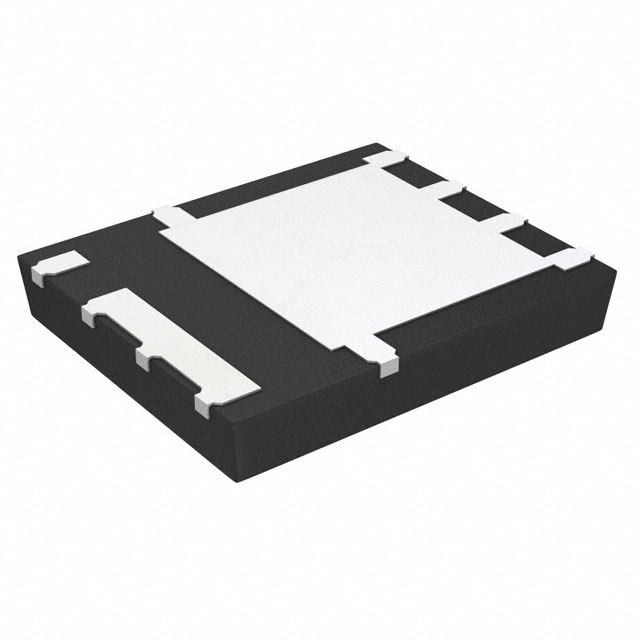

The BSC010N04LSATMA1 comes in a PG-TDSON-8 surface-mount package (also known as 8-PowerTDFN). It features Pb-free lead plating, is RoHS compliant, and is halogen-free according to IEC61249-2-21. The device is 100% avalanche tested and offers higher solder joint reliability due to enlarged source interconnection.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.34 | $2.34 |
| 10+ | $1.50 | $1.50 |
| 100+ | $1.02 | $1.02 |
| 500+ | $0.81 | $0.81 |
| 1,000+ | $0.73 | $0.73 |
| 2,500+ | $0.72 | $0.72 |
| 5,000+ | $0.69 | $0.69 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum drain-source voltage is 40V.
The maximum on-resistance is 1mOhm at VGS=10V.
The maximum continuous drain current is 292A at case temperature 25°C with VGS=10V.
The operating temperature range is -55°C to 175°C (junction).
Yes, the BSC010N04LSATMA1 is RoHS compliant and halogen-free according to IEC61249-2-21.
The BSC010N04LSATMA1 is available in a PG-TDSON-8 surface-mount package.
The typical gate charge is 84nC (VGS=0V to 10V), with a maximum of 95nC at VGS=10V.
