| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
10 pcs
|
10 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Drain to Source Voltage (Vdss) | |
| Drive Voltage (Max Rds On, Min Rds On) | |
| FET Type | |
| Gate Charge (Qg) (Max) @ Vgs | |
| Halogen Free | |
| Industrial Grade | |
| Input Capacitance (Ciss) (Max) @ Vds | |
| Mounting Type | |
| Operating Temperature | |
| Power Dissipation (Max) | |
| Rds On (Max) @ Id, Vgs | |
| Storage Temperature | |
| Supplier Device Package | |
| Tape & Reel | |
| Technology | |
| Vgs (Max) | |
| Vgs(th) (Max) @ Id |

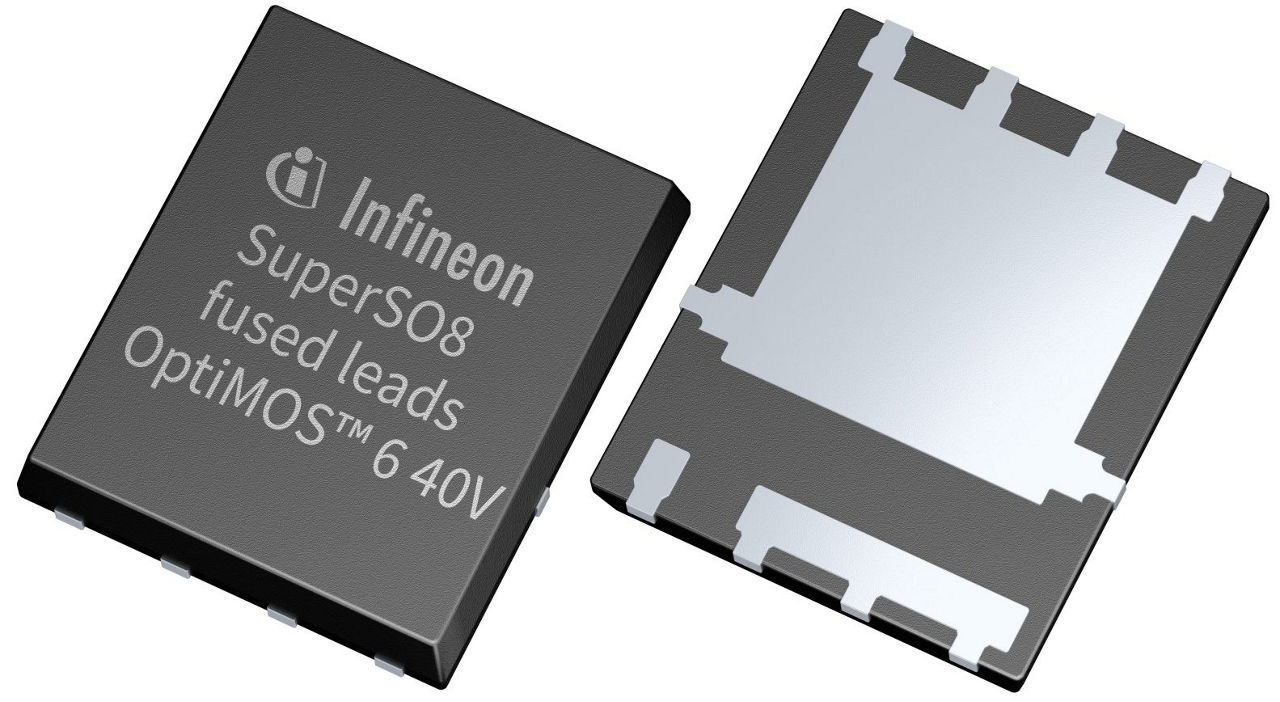

The Infineon BSC010N04LS6ATMA1 is an N-Channel enhancement-mode power MOSFET built on the OptiMOS 6 technology platform. It features a maximum drain-source voltage of 40V and a continuous drain current rating of 40A at 25°C ambient temperature (100A at case temperature 25°C). The device achieves an ultra-low maximum on-resistance of 1 mOhm at Vgs=10V and Id=50A, making it suitable for high-efficiency power conversion.
This MOSFET is optimized for synchronous rectification applications and is 100% avalanche tested. It offers a typical gate charge of 67 nC at Vgs=10V and 32 nC at Vgs=4.5V, with an output charge of 73 nC. The input capacitance is 4600 pF at Vds=20V. The device is rated for an operating junction temperature range of -55°C to 175°C.
The BSC010N04LS6ATMA1 is supplied in the PG-TDSON-8 FL package (8-PowerTDFN) with a supplier device package of PG-TDSON-8-6. It is surface-mountable and features Pb-free lead plating. The product is RoHS compliant and halogen-free per IEC61249-2-21.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.50 | $2.50 |
| 10+ | $1.60 | $1.60 |
| 100+ | $1.08 | $1.08 |
| 500+ | $0.87 | $0.87 |
| 1,000+ | $0.78 | $0.78 |
| 5,000+ | $0.78 | $0.78 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum drain-source voltage (Vdss) is 40 V.
The maximum drain-source on-resistance is 1 mOhm at Vgs=10V and Id=50A.
It is supplied in an 8-PowerTDFN package (PG-TDSON-8 FL) with supplier device package PG-TDSON-8-6.
The operating junction temperature range is -55°C to 175°C.
Yes, it is RoHS compliant with Pb-free lead plating.
Typical gate charge is 67 nC at Vgs=10V and 32 nC at Vgs=4.5V.
The maximum continuous drain current is 40 A at Ta=25°C and 100 A at Tc=25°C.
