| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
6,020 pcs
|
6020 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Drain to Source Voltage (Vdss) | |
| Drive Voltage (Max Rds On, Min Rds On) | |
| FET Type | |
| Gate Charge (Qg) (Max) @ Vgs | |
| Halogen Free | |
| Industrial Grade | |
| Input Capacitance (Ciss) (Max) @ Vds | |
| Mounting Type | |
| Operating Temperature | |
| Power Dissipation (Max) | |
| Rds On (Max) @ Id, Vgs | |
| SVHC Present | |
| Supplier Device Package | |
| Tape & Reel | |
| Technology | |
| Vgs (Max) | |
| Vgs(th) (Max) @ Id |

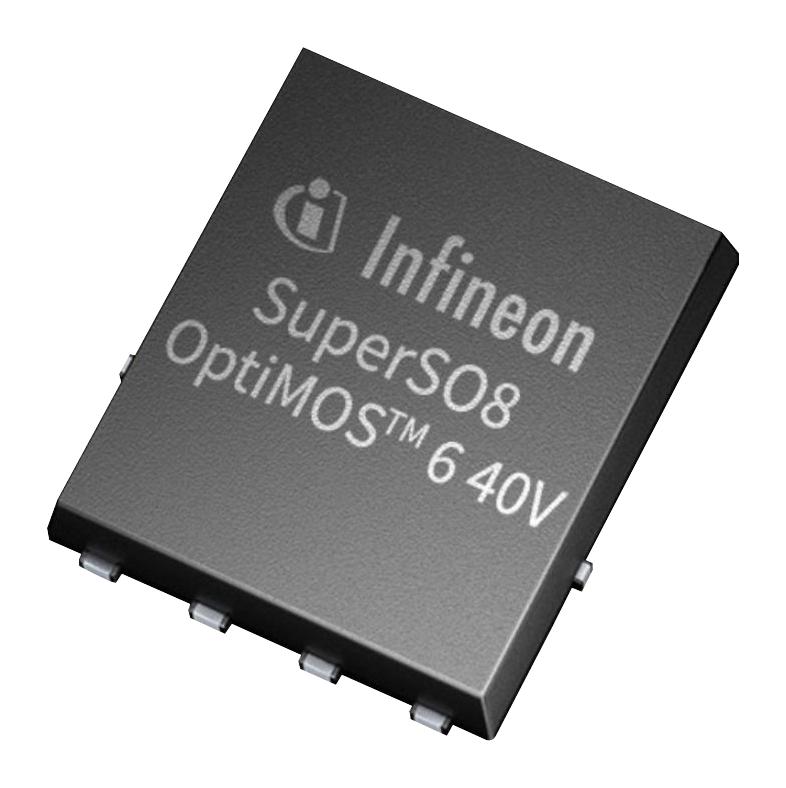

The BSC007N04LS6ATMA1 is an N-Channel Power MOSFET from Infineon's OptiMOS 6 family, designed for synchronous rectification and high-current switching applications. It features a maximum drain-source voltage of 40V and a continuous drain current of 381A at Tc=25°C. The device offers a very low on-resistance of 0.7 mOhm (max) at 50A and 10V gate drive, minimizing conduction losses.
Key electrical characteristics include a gate charge of 94 nC (0-10V) and 45 nC (0-4.5V), input capacitance of 8400 pF, and single-pulse avalanche energy of 674 mJ. The MOSFET is 100% avalanche tested for ruggedness. It operates over a junction temperature range of -55°C to 175°C.
The device is housed in a PG-TDSON-8 surface mount package (supplier package PG-TDSON-8-6) with exposed drain pads for efficient thermal management. It is RoHS compliant, halogen-free per IEC61249-2-21, and fully qualified for industrial applications per JEDEC standards.
| Qty | Low | High |
|---|---|---|
| 1+ | $3.69 | $3.69 |
| 10+ | $2.20 | $2.20 |
| 100+ | $1.57 | $1.57 |
| 500+ | $1.37 | $1.37 |
| 1,000+ | $1.32 | $1.32 |
| 2,500+ | $1.29 | $1.29 |
| 5,000+ | $1.10 | $1.10 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
Maximum 40 V.
PG-TDSON-8 surface mount package (supplier device package PG-TDSON-8-6).
-55°C to 175°C (junction temperature).
Yes, RoHS compliant and halogen-free according to IEC61249-2-21.
Maximum 0.7 mOhm at 50A and 10V gate drive.
94 nC at 0-10V gate drive, 45 nC at 0-4.5V gate drive.
Single pulse avalanche energy 674 mJ at 50A and 25Ω gate resistance.
