| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5,934 pcs
|
5934 pcs | On Request | 1 | On Request | On Request | 17+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Drain to Source Voltage (Vdss) | |
| Drive Voltage (Max Rds On, Min Rds On) | |
| FET Type | |
| Gate Charge (Qg) (Max) @ Vgs | |
| Input Capacitance (Ciss) (Max) @ Vds | |
| Lead Style | |
| Mounting Type | |
| Operating Temperature | |
| Power Dissipation (Max) | |
| Rds On (Max) @ Id, Vgs | |
| Supplier Device Package | |
| Tape & Reel | |
| Technology | |
| Vgs (Max) | |
| Vgs(th) (Max) @ Id |
The BSB280N15NZ3G is an N-Channel MOSFET manufactured by Infineon Technologies. It is designed for power switching applications with a maximum drain-source voltage of 150V and a continuous drain current of 30A at case temperature (9A at ambient). The device offers a low on-resistance of 28mOhm maximum at 30A drain current and 10V gate drive.
Electrical characteristics include a gate threshold voltage of 4V maximum at 60µA, a gate charge of 21nC at 10V, and an input capacitance of 1600pF at 75V drain-source voltage. These parameters make it suitable for high-frequency switching and efficient power conversion.

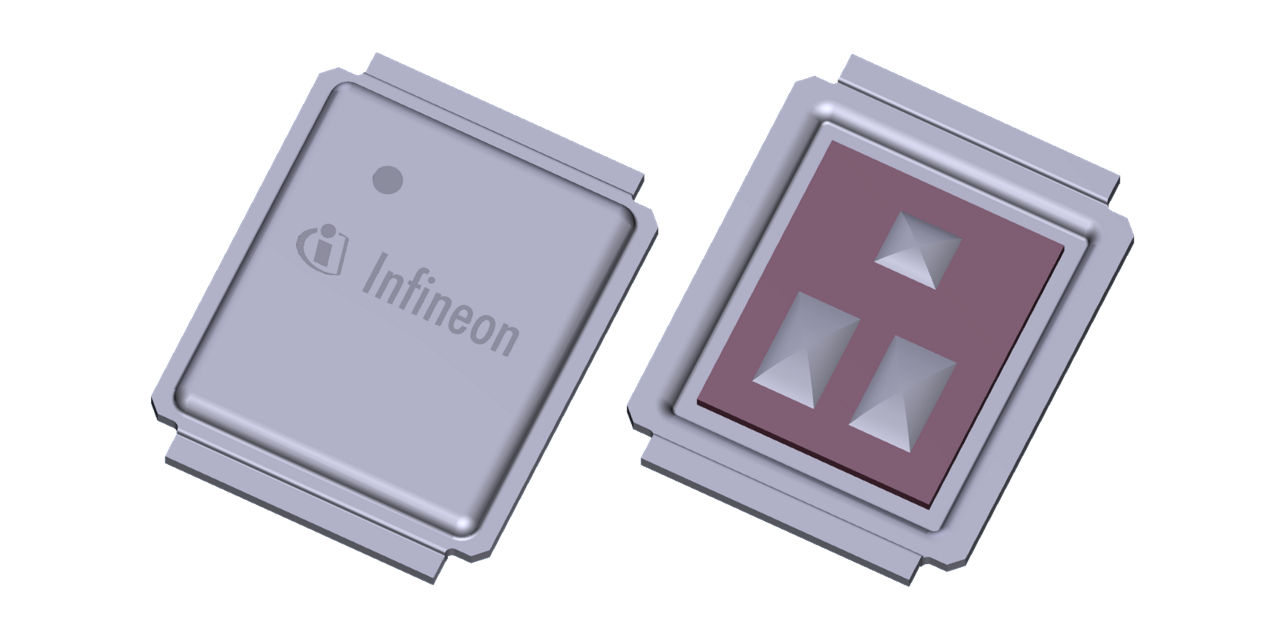

The MOSFET is housed in a DirectFET Isometric MX surface mount package (supplier package MG-WDSON-2-5). It operates over a junction temperature range of -40°C to 150°C and has a maximum power dissipation of 2.8W at ambient temperature and 57W at case temperature.
The maximum drain-source voltage (Vdss) is 150V.
The continuous drain current is 9A at ambient temperature and 30A at case temperature.
The maximum on-resistance is 28mOhm at 30A drain current and 10V gate drive.
The maximum gate threshold voltage is 4V at 60µA drain current.
The operating junction temperature range is -40°C to 150°C.
It is available in a DirectFET Isometric MX surface mount package (supplier package MG-WDSON-2-5).
It is listed as RoHS3 Compliant, but this status is unverified.
