Mfr Part #:

BS0060M

Mfr Name: Semiteh

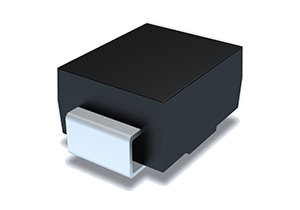

The SEMITEH BS0060M is an overvoltage protection device designed for robust circuit protection. It features a 6.0V non-operating voltage and can handle surge peaks up to 2.0KV.

✓ Total Stock: 60,000 pcs

$ Price Range: $1.17

BS0060M Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Optech Co.,Limited ✓ Non-Authorised Inventory information	60,000 pcs On Request	60000 pcs	On Request	1	On Request	On Request	19+ROHS	On Request	On Request

BS0060M Specifications Quick View

Most important parameters for selection – full specs in datasheet.

SELECT ALL

Category	New Products
Manufacturer Name	Semiteh
Capacitance	50pF

View Similar Products (0)

BS0060M Description

Short technical summary and product information.

The SEMITEH BS0060M is a semiconductor device designed for overvoltage protection, specifically a Transient Suppression Semiconductor (TSS). It operates with a maximum non-operating voltage (VDRM) of 6.0V and a maximum leakage current (ID max) of 5.0μA. The device has a maximum turn-on voltage (VS max) of 25V and a minimum surge current (IS) of 800mA.

With a maximum on-state voltage (VT max) of 4.0V at 2.2A (IT), and a holding current (IH) of at least 50mA, the BS0060M ensures effective protection under surge conditions. Its junction capacitance is a maximum of 50pF at 2V and 1MHz. The device is rated for a surge waveform of 10/700μs, with a surge peak capability of 2.0KV.

Packaged in an SMA case, the BS0060M has dimensions of 5.0mm in length, 2.5mm in width, and 2.3mm in height. This compact size makes it suitable for various electronic applications requiring overvoltage protection.

This overvoltage protection device is suitable for applications where transient voltage suppression is critical. Its specifications allow it to protect sensitive electronic components from damaging voltage spikes.

BS0060M Quick Information

Product Type: Overvoltage Protection Device

Canonical Name: SEMITEH BS0060M Overvoltage Protection Device

Subcategory: TSS (Thyristor Surge Suppressor)

BS0060M Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

BS0060M Estimated Pricing

Qty	Low	High
1+	$1.17	$1.17

Estimated market price range - modelled values for guidance only, not live distributor offers.

BS0060M Features

6.0V maximum non-operating voltage.
Handles surge peaks up to 2.0KV.
Compact SMA package dimensions.
Low junction capacitance of 50pF.
800mA minimum surge current.

BS0060M Applications

Protects sensitive electronic components.
Suitable for transient voltage suppression.
Used in compact electronic designs.
Ensures circuit integrity under surges.

BS0060M FAQs

7 frequently asked questions generated from this part’s specifications.

What is the maximum non-operating voltage (VDRM) for the BS0060M?

The maximum non-operating voltage (VDRM) for the BS0060M is 6.0V.

What is the surge peak capability of the BS0060M?

The BS0060M has a surge peak capability of 2.0KV.

What are the dimensions of the BS0060M in the SMA package?

The BS0060M in the SMA package has a body length of 5.0mm, a width of 2.5mm, and a height of 2.3mm.

What is the junction capacitance of the BS0060M?

The junction capacitance of the BS0060M is a maximum of 50pF at 2V and 1MHz.

What is the RoHS status of the BS0060M?

The RoHS status is RoHS3 Compliant.

What is the Moisture Sensitivity Level (MSL) for the BS0060M?

The Moisture Sensitivity Level (MSL) for the BS0060M is 1 Unlimited.

What is the REACH status for the BS0060M?

The REACH status is REACH Unaffected.
