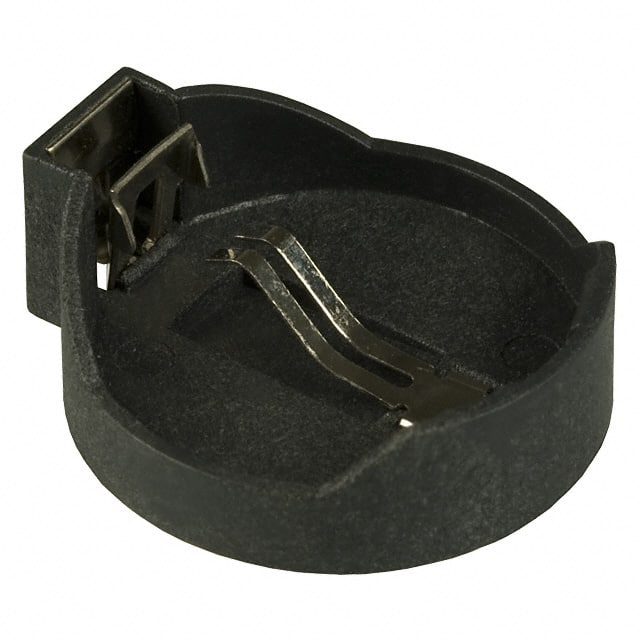

BS-7 BS-7 is a through-hole coin cell holder for one 20mm (2032) battery, with PC Pin termination.
Mfr Part #:

BS-7

Available from 2 distributors
Mfr Name: MPD (Memory Protection Devices)
MPD (Memory Protection Devices)
BS-7 is a through-hole coin cell holder for one 20mm (2032) battery, with PC Pin termination.
✓ Total Stock: 776 pcs
$ Price Range: $0.55 - $1.09

BS-7 Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
749 pcs
On Request
749 pcs On Request 1 On Request On Request On Request On Request On Request
Trace Tec ✓
Non-Authorised Inventory information
27 pcs
On Request
27 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

BS-7 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Battery Cell Size
Battery Series
Battery Type, Function
Height Above Board
Lead Style
Mounting Type
Number of Cells
Operating Temperature
Operating Temperature Range
SVHC Present
Style
Termination Style
View Similar Products (0)

BS-7 Description

Short technical summary and product information.

The BS-7 from MPD (Memory Protection Devices) is a battery holder designed for 20mm coin cell batteries, specifically the 2032 series. This open-style holder accommodates a single cell and features PC Pin termination for secure through-hole PCB mounting.



With a height above board of 9.00mm (0.354 inches), the BS-7 offers a compact footprint suitable for space-constrained designs. It supports an operating temperature range of -55°C to 105°C, making it suitable for a wide variety of environments.



The holder is constructed in an open design, allowing easy insertion and replacement of the coin cell. The PC pins provide reliable electrical connections when soldered to the PCB. This holder is ideal for applications requiring battery backup, such as real-time clocks, memory retention, and portable electronics.

BS-7 Quick Information

Product Type: Battery Holder
Series: 2032
Canonical Name: BS-7 Coin Cell Holder for 20mm (2032) Batteries, 1 Cell, PC Pin, Through Hole
Subcategory: Coin Cell Holder

BS-7 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

BS-7 Estimated Pricing

Qty Low High
1+ $1.09 $1.09
10+ $0.91 $0.91
50+ $0.79 $0.79
100+ $0.75 $0.75
250+ $0.70 $0.70
500+ $0.66 $0.66
1,000+ $0.62 $0.62
2,500+ $0.58 $0.58
5,000+ $0.55 $0.55

Estimated market price range - modelled values for guidance only, not live distributor offers.

BS-7 Features

  • Accepts one 20mm coin cell (2032 series).
  • PC Pin termination for through-hole PCB mounting.
  • Height above board is 9.00mm (0.354 inches).
  • Operating temperature range of -55°C to 105°C.
  • Open holder style for easy battery insertion.

BS-7 Applications

  • Power backup for real-time clock circuits.
  • Memory retention in embedded systems.
  • Portable consumer electronics requiring battery backup.

BS-7 FAQs

3 frequently asked questions generated from this part’s specifications.
What is the operating temperature range of the BS-7?

-55°C to 105°C

Is the BS-7 RoHS compliant?

RoHS3 Compliant (unverified).

What battery size does the BS-7 holder accept?

20mm coin cell, 2032 series.
