| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
63 pcs
|
63 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Configuration | |
| Current | |
| Height (Max) | |
| Lens Color | |
| Lens Size | |
| Lens Style | |
| Lens Transparency | |
| Millicandela Rating | |
| Mounting Type | |
| Operating Temperature | |
| Storage Temperature | |
| Tape & Reel | |
| Viewing Angle | |
| Voltage | |
| Wavelength |

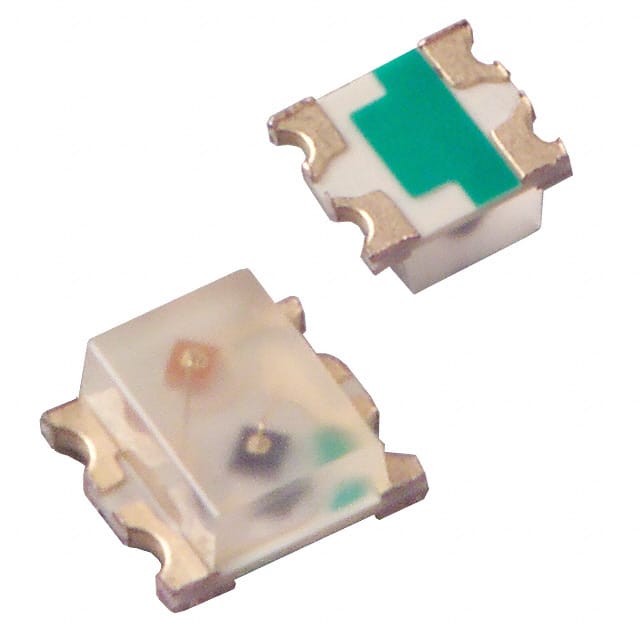

This bi-color LED from Stanley Electric, part number BRPG1211C-TR, is designed for discrete indication applications. It combines Green and Red light emission within a single component, utilizing AlGaInP and GaP die materials. The LED has a typical forward voltage of 2.1V for Green and 1.7V for Red, with a standard forward current of 20mA for both colors. Its dominant wavelengths are 560nm for Green and 660nm for Red, providing typical luminous intensities of 6.4mcd and 11.7mcd, respectively.
The component is housed in a 0606 (1616 Metric) SMD package measuring 1.60mm in length and 1.50mm in width, with a maximum height of 0.80mm. It is designed for surface mounting and is compatible with reflow and manual soldering methods. The lens color is white with a diffused transparency, and the half intensity angle is approximately 168° and 139° for Green, and 150° and 140° for Red.
Recommended applications include communication machines, electric household appliances, OA/FA equipment, and other general applications. The operating temperature range is -40℃ to 85℃ for FRYPY variants and -30℃ to 85℃ for BRBG, BRPG, and BRPY variants, with a storage temperature range of -40℃ to 100℃. It is RoHS3 compliant and lead-free soldering compatible. The product is supplied in a 4,000-piece reel with an 8mm width tape and a reel diameter of 180mm.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.08 | $0.08 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
This bi-color LED emits both Green and Red light.
The BRPG1211C-TR LED is supplied in a 0606 (1616 Metric) SMD package.
The typical forward voltage is 2.1V for Green and 1.7V for Red when the current is 20mA.
The typical forward current for both Green and Red colors is 20mA.
The dominant wavelength for Green is 560nm, and for Red it is 660nm.
The operating temperature range is -40℃ to 85℃ for FRYPY variants and -30℃ to 85℃ for BRBG, BRPG, and BRPY variants.
